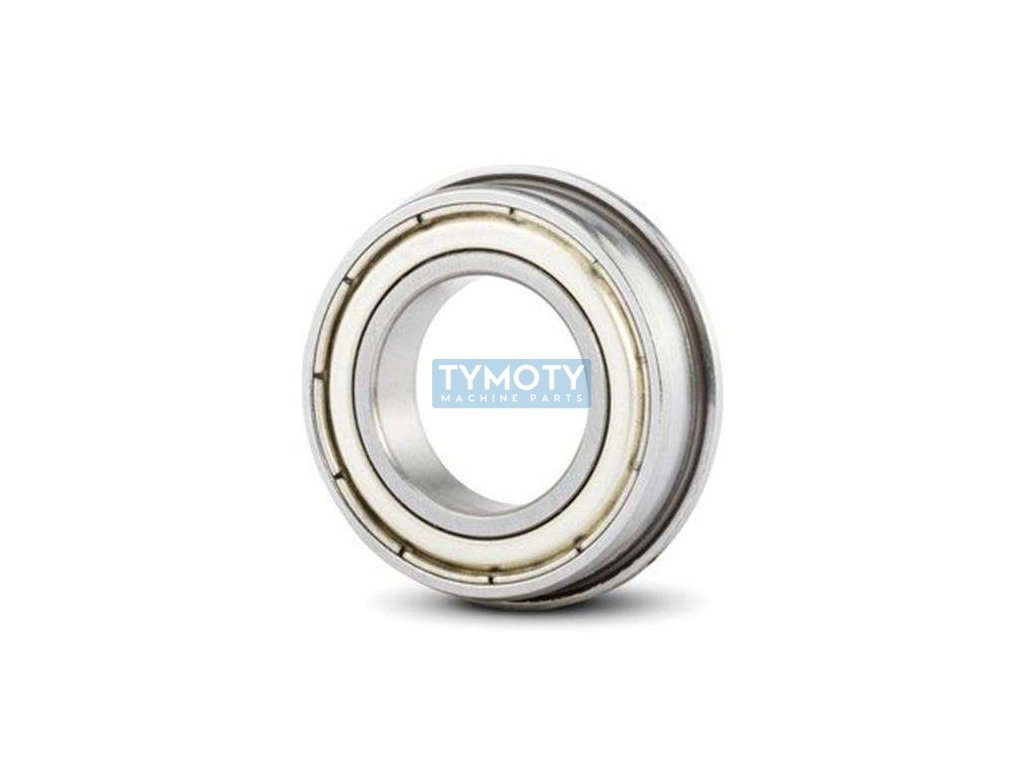

ZEN SFR 168-2Z stainless steel ball bearing with flange
Code: 633181
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > ball bearing with flange > inch with flange > d = 6.350 mm (1/4") |
|---|---|
| Weight: | 0.001 kg |
| Cage: | stainless steel |
| Clearance: | normal |
| Diameter D (mm): | 9,525, 6,350 |
| Diameter d1 (mm): | 10,719 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | ZEN |
| Material: | stainless steel |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -30 |
| Seal: | double-sided cover, sheet metal |
| The shape of the outer ring: | with flange |
| Width B (mm): | 3,175 |
| Width C (mm): | 0,914 |
| Značení: | SFR 168 2Z |
| Typ: | nerezové kuličkové ložisko s přírubou |
