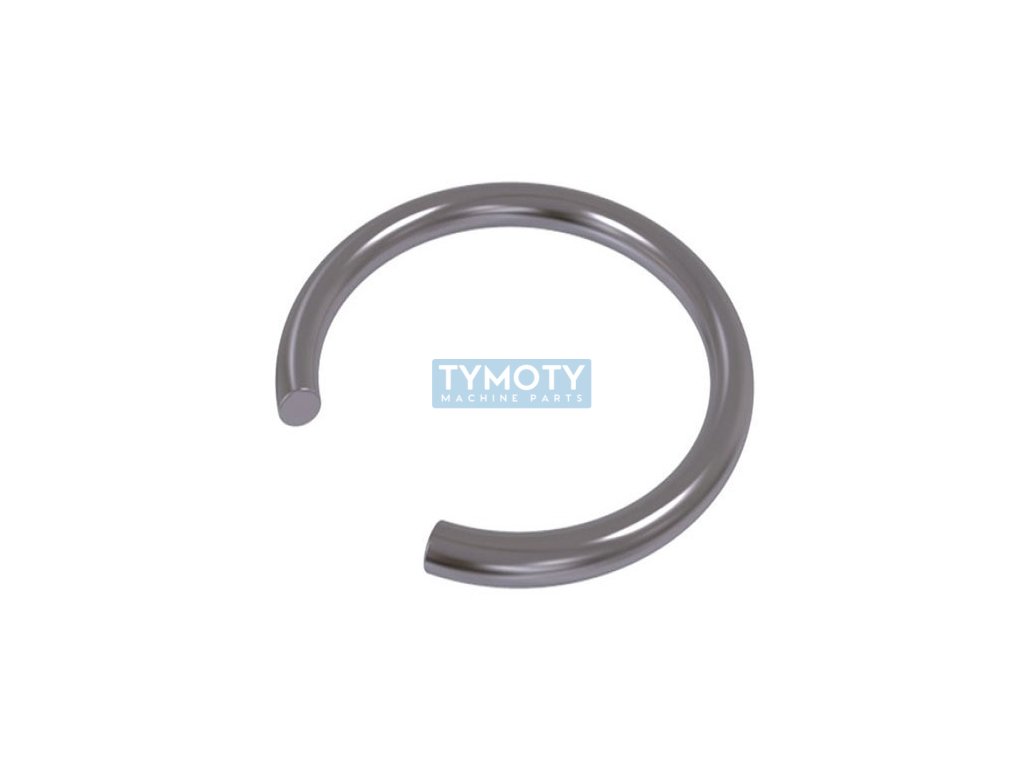

Wire retaining ring for hole DIN 7993B 24 mm
Code: 857150
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > circlips > into the hole DIN 7993B wire |
|---|---|
| CSN standard: | 022925 |
| Diameter D (mm): | 24 |
| Diameter d1 (mm): | 26 |
| Diameter D2 (mm): | 26,3 |
| Diameter d3 (mm): | 2 |
| DIN standard: | 7993B |
| Material: | spring steel |
| Radius r (mm): | 1,1 |
| Width e (mm): | 10 |
