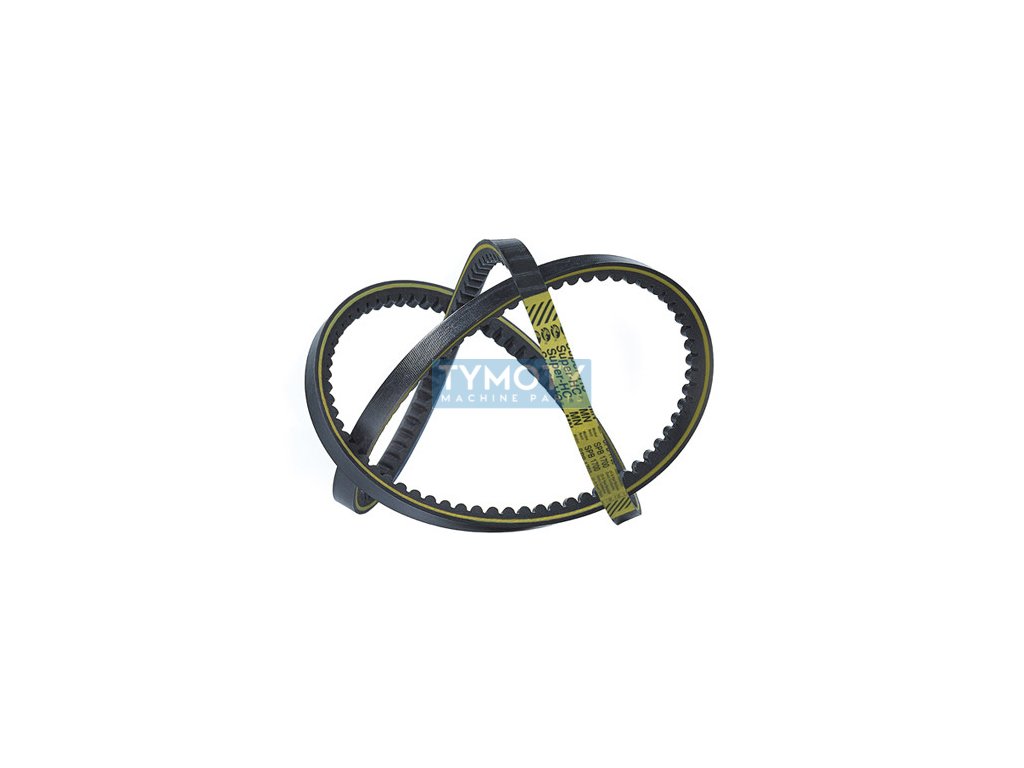

V-belt SPZ 1387 Lw Gates Super-HC MN
Code: 542393
Product detailed description
No product's description available
Additional parameters
| Category: | Belts > wedge simple > narrow wrapped > license plate (9.7x8) |
|---|---|
| Weight: | 0.101 kg |
| Angle ( ° ): | 36 |
| Calculation length Lw, Lp, mm: | 1387 |
| Cord type: | PES |
| Country of origin: | FR |
| DIN standard: | 7753/1 |
| Height H (mm): | 8 |
| Inner length Li (mm): | 1349 |
| ISO standard: | 4184 |
| Manufacturer's brand: | Gates |
| Material: | CR |
| Maximum temperature °C: | 60 °C |
| Minimum diameter: | 63 |
| Minimum temperature °C: | -30 °C |
| Outer length La (mm): | 1400 |
| Product: | V-belt narrow |
| Profile: | XPZ |
| Width B (mm): | 10 |
| Číslo výrobce: | 9418-01387 |
| Značení: | SPZ1387MN SUPERHC MN |
| Řada: | SUPER HC MN |
| Typ: | řezaný |
