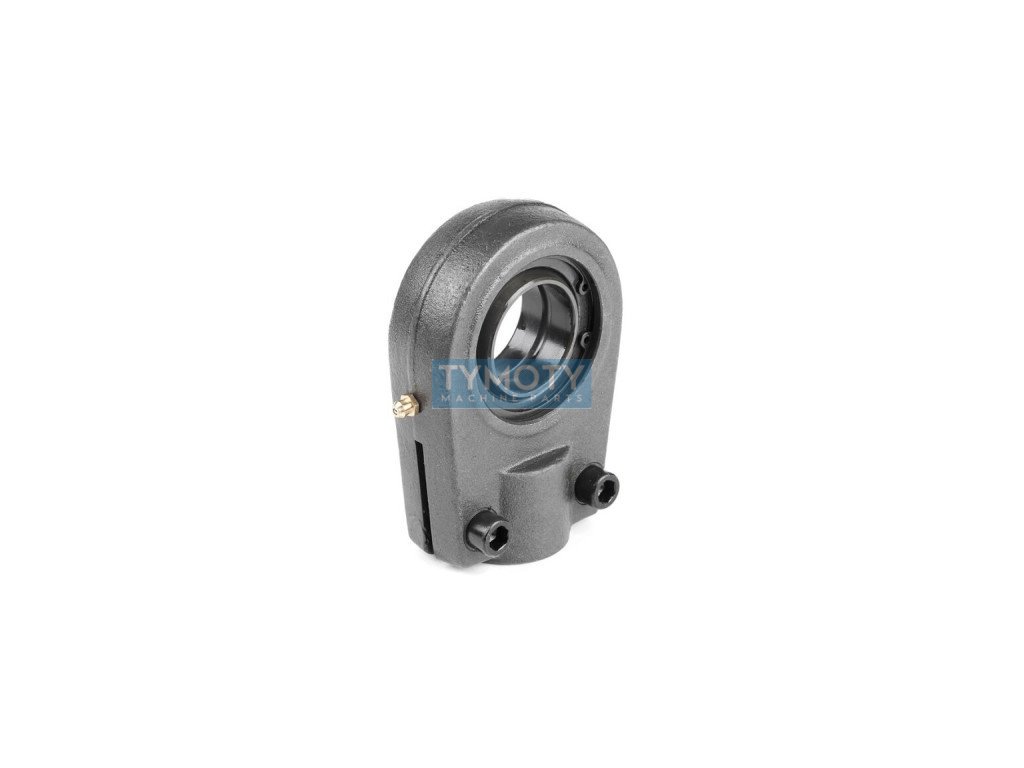

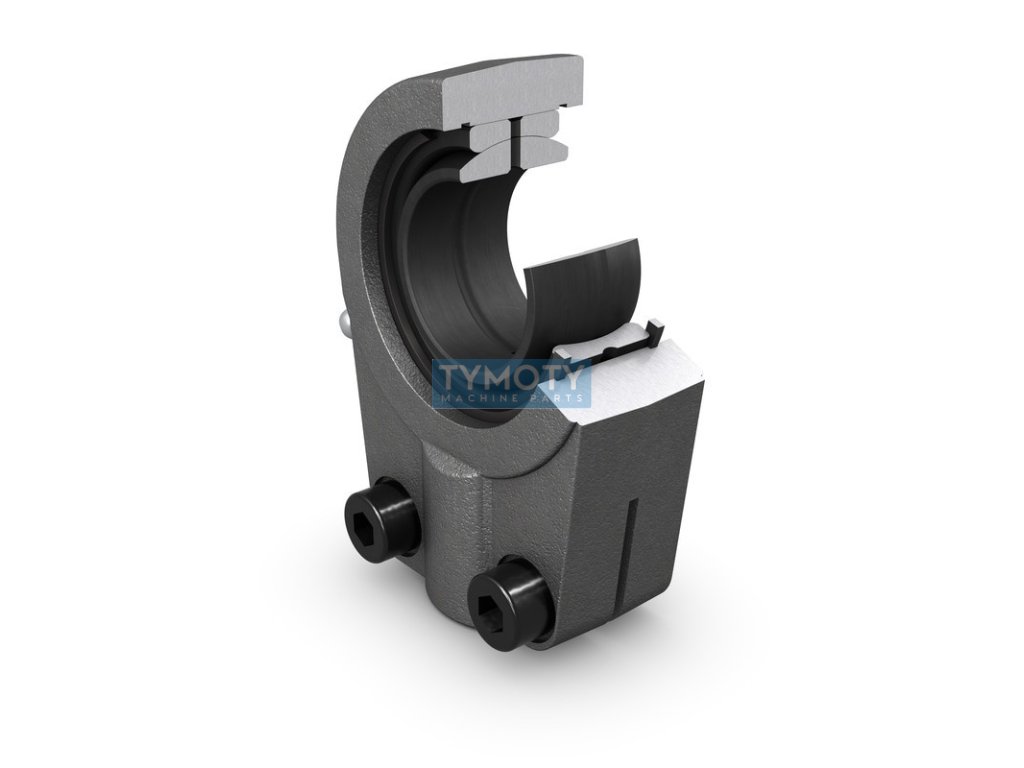

SKF SIR 30 ES joint head
Code: 399169
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > slippery > articulated heads > for hydraulic cylinders > internal thread, steel-steel (SIR..ES, GIHRK..-DO) > d = 30 mm thread M22x1.5 |
|---|---|
| Weight: | 0.729 kg |
| Angle ( ° ): | 6 |
| Diameter D (mm): | 30, 65,1 |
| Diameter D2 (mm): | 66 |
| Diameter d4 (mm): | 33 |
| Diameter dk (mm): | 40,7 |
| Height H1 (mm): | 60 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 23 |
| Length l4 (mm): | 95 |
| Length l7 (mm): | 29 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Pitch N1 (mm): | 28,5 |
| Radius r (mm): | 0,6 |
| Seal: | without gaskets |
| Spacing N (mm): | 50 |
| Thread G: | M 22x1,5 |
| Width B (mm): | 22 |
| Width C1 (mm): | 28,5 |
| Značení: | SIR 30 ES |
| Typ: | kloubová hlavice |
