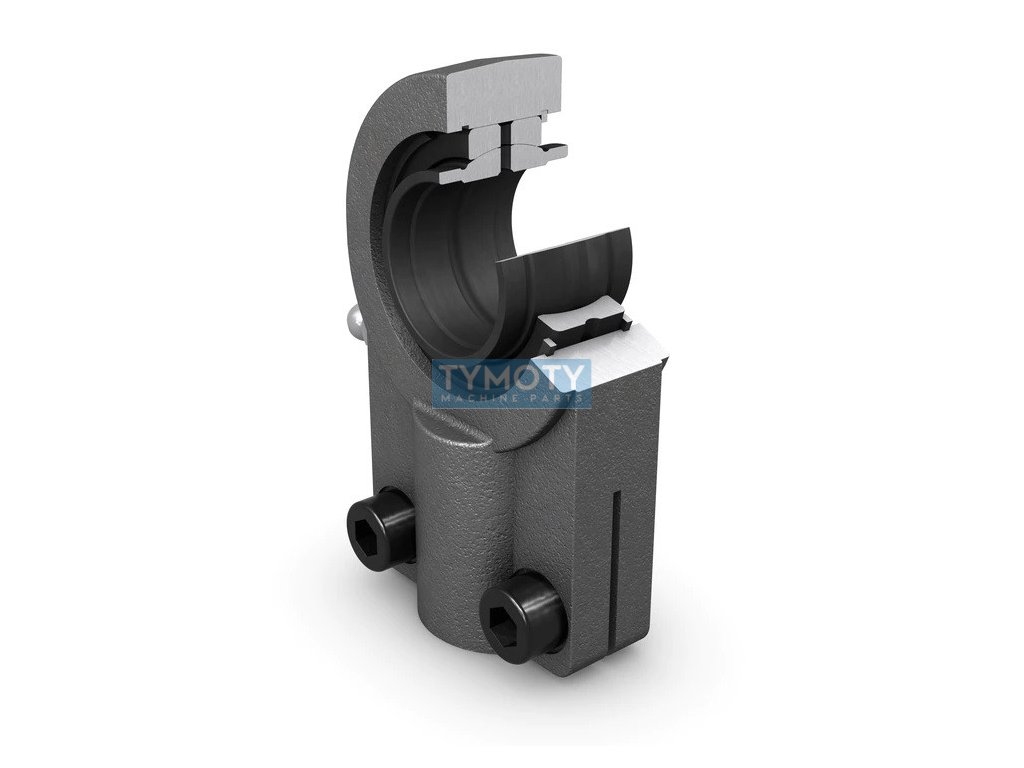

SKF SIQG 40 ES articulated head
Code: 399109
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > slippery > articulated heads > for hydraulic cylinders > internal thread, steel-steel (SIQG..ES, GIHNRK..-LO) > d = 40 mm thread M33x2 |
|---|---|
| Weight: | 2.074 kg |
| Angle ( ° ): | 4 |

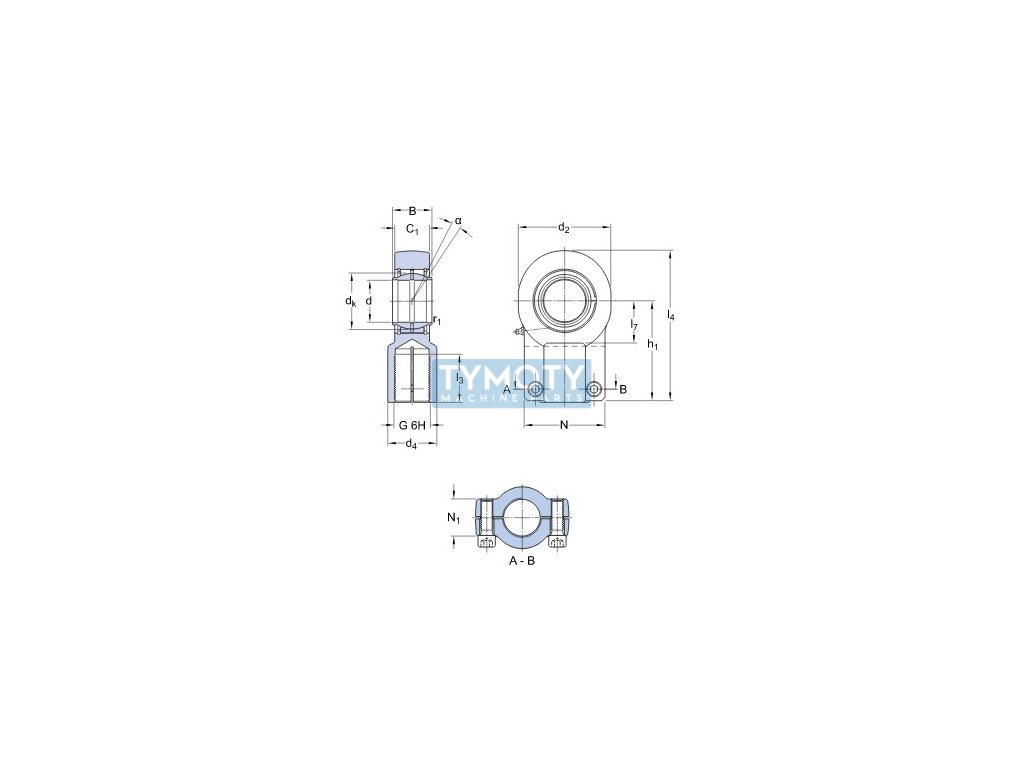

| Diameter D (mm): | 40, 91,2 |
| Diameter D2 (mm): | 95 |
| Diameter d4 (mm): | 49 |
| Diameter dk (mm): | 53 |
| Height H1 (mm): | 97 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 46 |
| Length l4 (mm): | 146,5 |
| Length l7 (mm): | 40 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Pitch N1 (mm): | 28 |
| Radius r (mm): | 0,6 |
| Seal: | without gaskets |
| Spacing N (mm): | 82 |
| Thread G: | M 33x2 |
| Width B (mm): | 40 |
| Width C1 (mm): | 34 |
| Značení: | SIQG 40 ES |
| Typ: | kloubová hlavice |
