SKF SIQG 32 ES articulated head
Code: 399079
Product detailed description
No product's description available

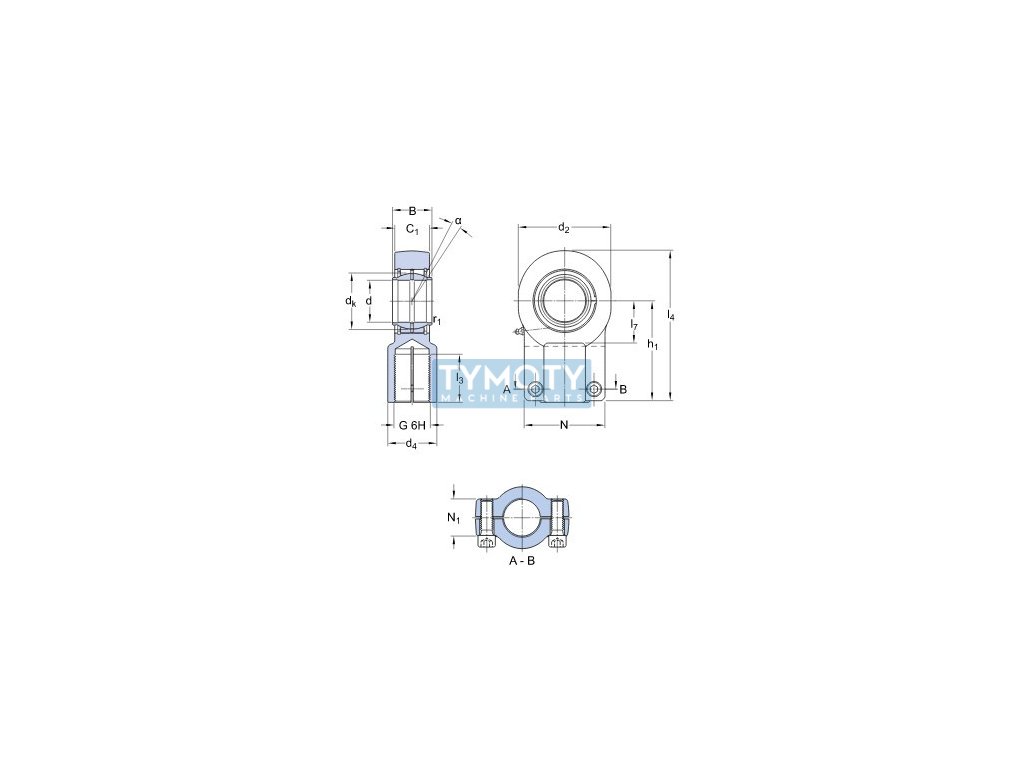

Additional parameters
| Category: | Bearings > slippery > articulated heads > for hydraulic cylinders > internal thread, steel-steel (SIQG..ES, GIHNRK..-LO) > d = 32 mm thread M27x2 |
|---|---|
| Weight: | 1.118 kg |
| Angle ( ° ): | 4 |
| Diameter D (mm): | 32, 72,1 |
| Diameter D2 (mm): | 76 |
| Diameter d4 (mm): | 40 |
| Diameter dk (mm): | 43 |
| Height H1 (mm): | 80 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 37 |
| Length l4 (mm): | 119 |
| Length l7 (mm): | 31 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Pitch N1 (mm): | 23,5 |
| Radius r (mm): | 0,6 |
| Spacing N (mm): | 67 |
| Thread G: | M 27x2 |
| Width B (mm): | 32 |
| Width C1 (mm): | 28 |
| Značení: | SIQG 32 ES |
| Typ: | kloubová hlavice |
