SKF SIQG 20 ES articulated head
Code: 399036
Product detailed description
No product's description available

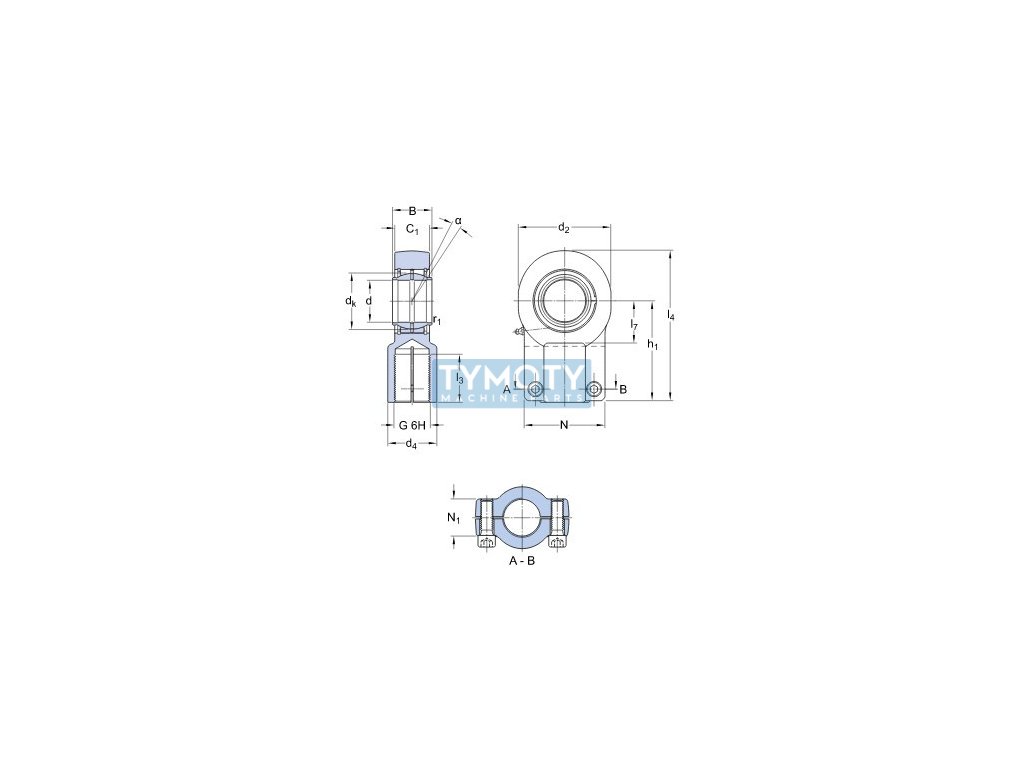

Additional parameters
| Category: | Bearings > slippery > articulated heads > for hydraulic cylinders > internal thread, steel-steel (SIQG..ES, GIHNRK..-LO) > d = 20 mm thread M16x1.5 |
|---|---|
| Weight: | 0.34 kg |
| Angle ( ° ): | 4 |
| Diameter D (mm): | 20, 48 |
| Diameter D2 (mm): | 50 |
| Diameter d4 (mm): | 26,5 |
| Diameter dk (mm): | 29 |
| Height H1 (mm): | 52 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 23 |
| Length l4 (mm): | 77 |
| Length l7 (mm): | 21 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Pitch N1 (mm): | 20 |
| Radius r (mm): | 0,3 |
| Spacing N (mm): | 48 |
| Thread G: | M 16x1,5 |
| Width B (mm): | 20 |
| Width C1 (mm): | 17,5 |
| Značení: | SIQG 20 ES |
| Typ: | kloubová hlavice |
