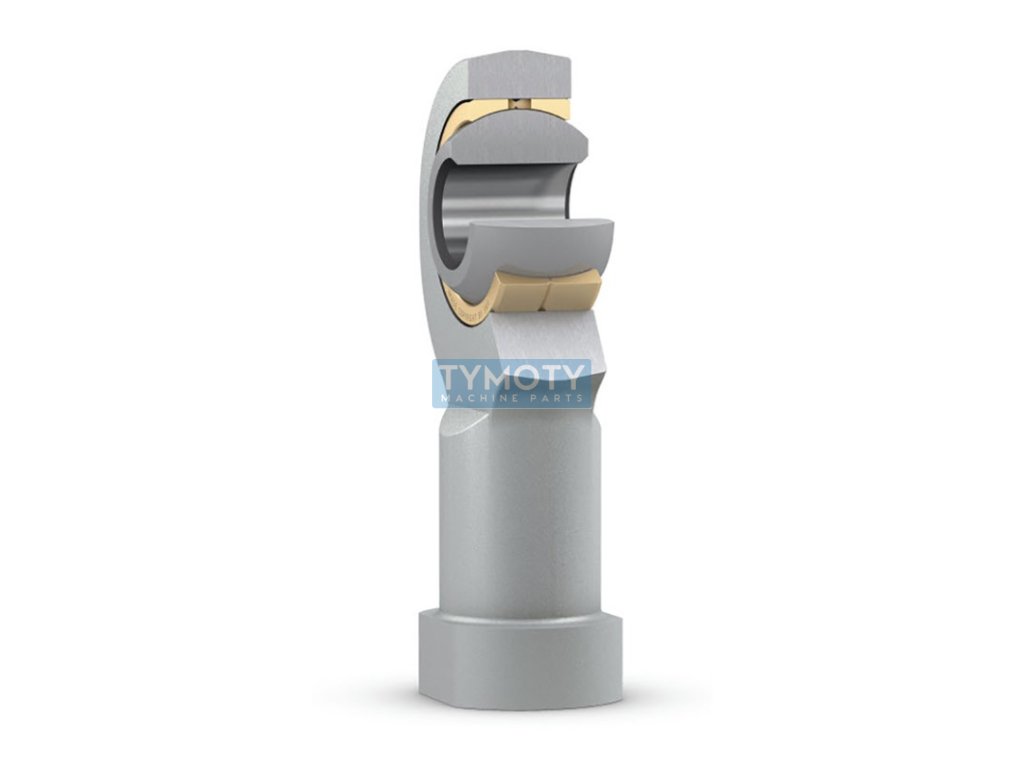

SKF SILKAC 14 M articulated head
Code: 399049
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > slippery > articulated heads > internal left-hand thread > steel-bronze (SILKAC..M, GIKL..PB) > d=14 mm thread M14 left |
|---|---|
| Weight: | 0.162 kg |
| Angle ( ° ): | 16 |
| Diameter D (mm): | 14, 37 |
| Diameter D2 (mm): | 37 |
| Diameter d3 (mm): | 20 |
| Diameter d4 (mm): | 27 |
| Diameter dk (mm): | 25,4 |
| Height H1 (mm): | 57 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 21 |
| Length l4 (mm): | 76 |
| Length l5 (mm): | 8 |
| Length l7 (mm): | 18 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,3 |
| Seal: | without gaskets |
| Thread G: | M 14 left |
| Width B (mm): | 19 |
| Width C1 (mm): | 14,5 |
| Značení: | SILKAC 14 M |
| Typ: | kloubová hlavice |
