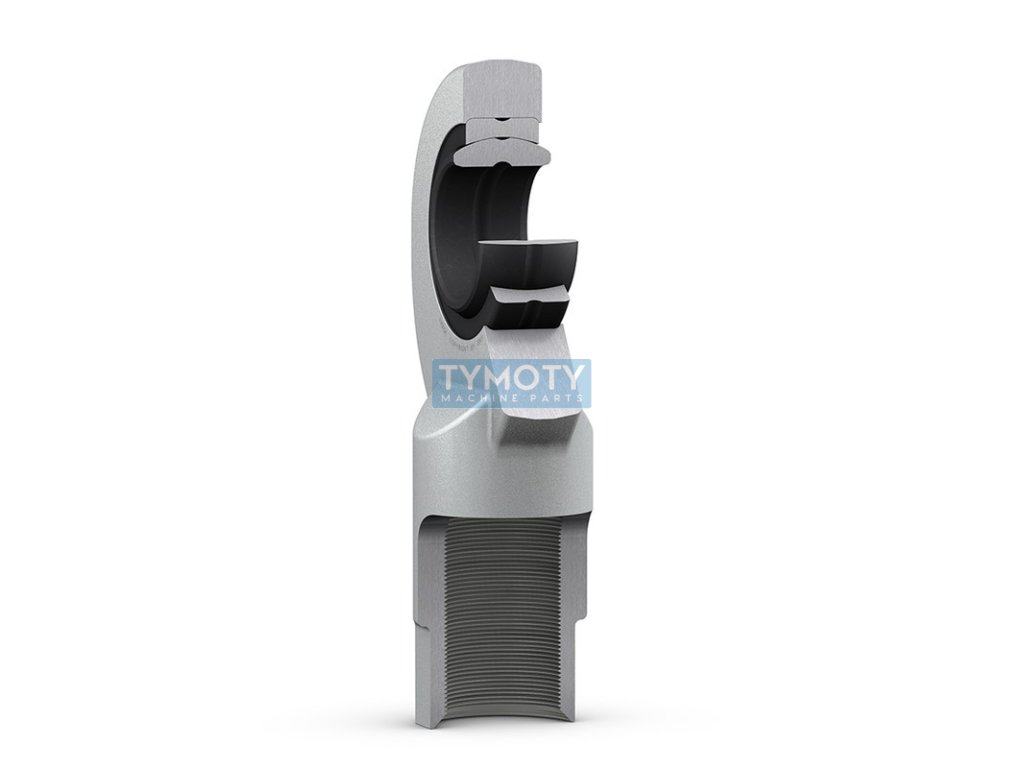

SKF SIL 8 E articulated head
Code: 399015
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > slippery > articulated heads > internal left-hand thread > steel-steel (SIL..ES, GIL..DO, DSIL..ES, EFN..502) > d=8 mm thread M8 left |
|---|---|
| Weight: | 0.036 kg |

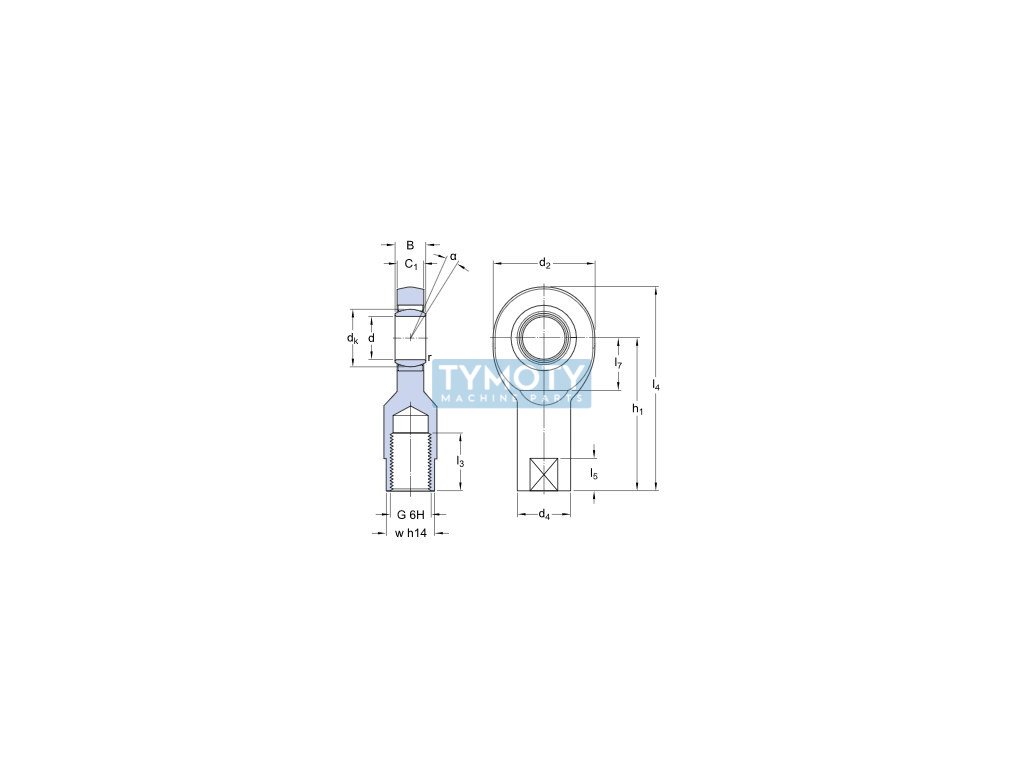

| Diameter D (mm): | 25, 8 |
| Diameter D2 (mm): | 25 |
| Diameter d4 (mm): | 13 |
| Diameter dk (mm): | 13 |
| Height H1 (mm): | 36 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 15 |
| Length l4 (mm): | 50 |
| Length l5 (mm): | 9 |
| Length l7 (mm): | 11 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,3 |
| Thread G: | M8 left |
| Width B (mm): | 8 |
| Width C1 (mm): | 6,5 |
| Značení: | SIL 8 E |
| Typ: | kloubová hlavice |
