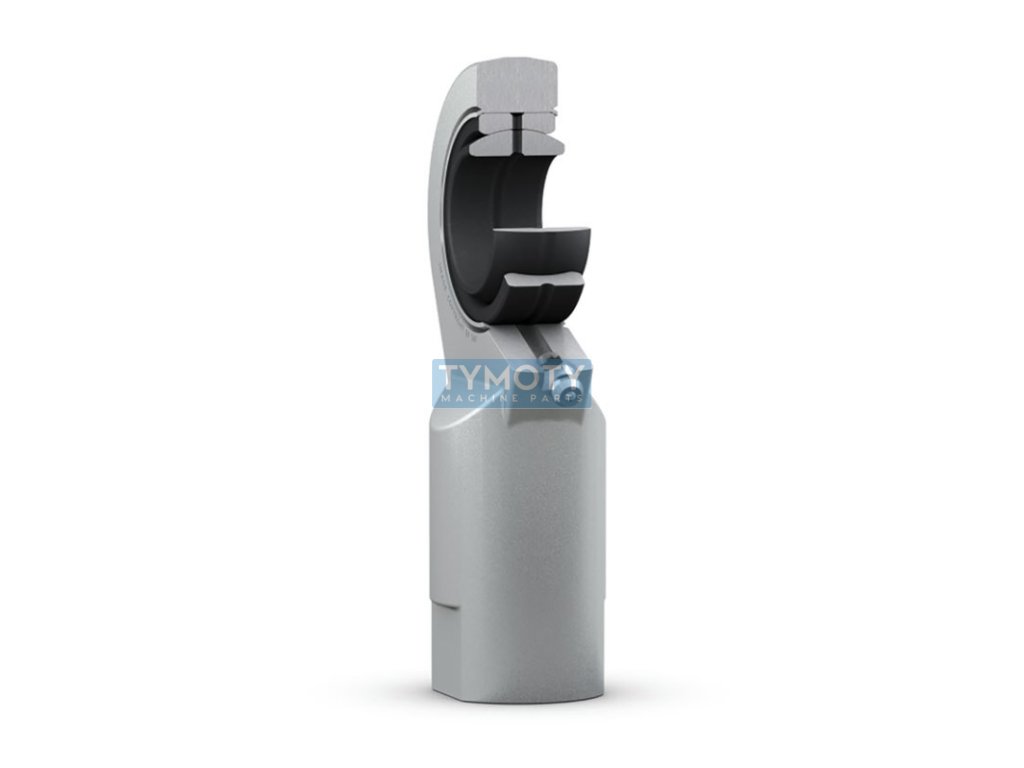

SKF SIL 30 ES articulated head
Code: 399022
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > slippery > articulated heads > internal left-hand thread > steel-steel (SIL..ES, GIL..DO, DSIL..ES, EFN..502) > d=30 mm thread M30x2 left |
|---|---|
| Weight: | 1.043 kg |
| Angle ( ° ): | 6 |
| Diameter D (mm): | 30, 75 |
| Diameter D2 (mm): | 75 |
| Diameter d4 (mm): | 42 |
| Diameter dk (mm): | 40,7 |
| Height H1 (mm): | 110 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 45 |
| Length l4 (mm): | 149 |
| Length l5 (mm): | 19 |
| Length l7 (mm): | 36 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,6 |
| Seal: | without gaskets |
| Thread G: | M30x2 left |
| Width B (mm): | 22 |
| Width C1 (mm): | 20 |
| Značení: | SIL 30 ES |
| Typ: | kloubová hlavice |
