SKF SIL 12 E articulated head
Code: 399017
Product detailed description
No product's description available

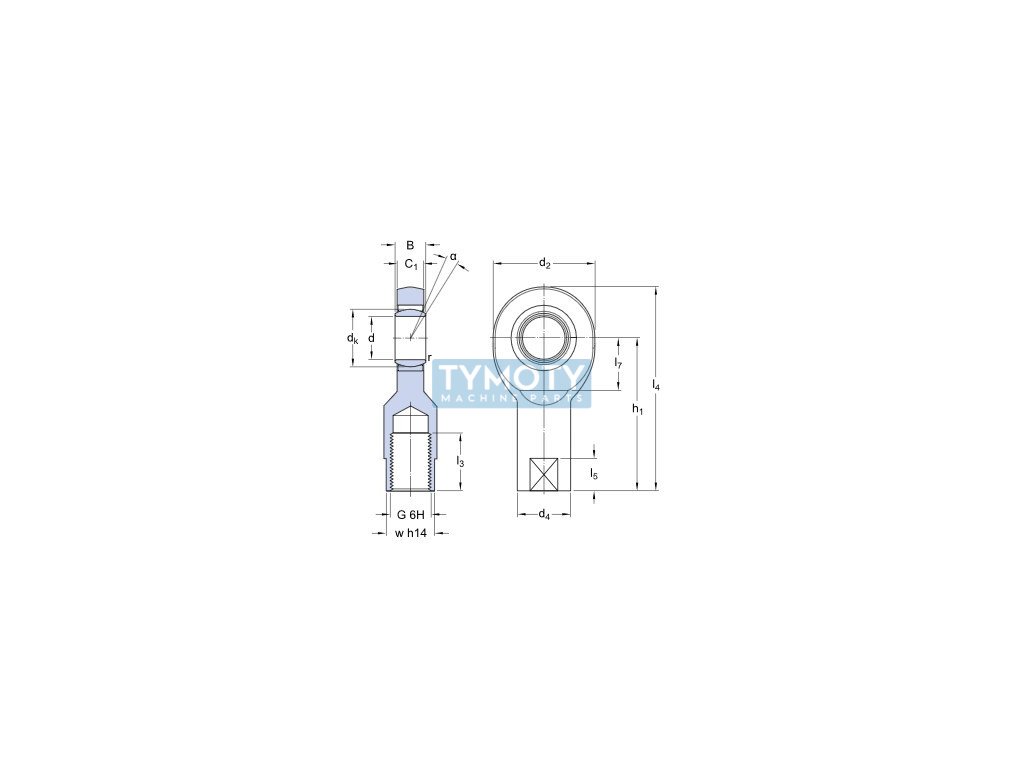

Additional parameters
| Category: | Bearings > slippery > articulated heads > internal left-hand thread > steel-steel (SIL..ES, GIL..DO, DSIL..ES, EFN..502) > d=12 mm thread M12 left |
|---|---|
| Weight: | 0.102 kg |
| Angle ( ° ): | 10 |
| Diameter D (mm): | 35, 12 |
| Diameter D2 (mm): | 35 |
| Diameter d4 (mm): | 19 |
| Diameter dk (mm): | 18 |
| Height H1 (mm): | 50 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 18 |
| Length l4 (mm): | 69 |
| Length l5 (mm): | 12 |
| Length l7 (mm): | 17 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,3 |
| Seal: | without gaskets |
| Thread G: | M12 left |
| Width B (mm): | 10 |
| Width C1 (mm): | 8,5 |
| Značení: | SIL 12 E |
| Typ: | kloubová hlavice |
