SKF SIKB 8 F ball joint, right-hand internal thread, steel/PTFE FRP, right-hand internal thread, steel/PTFE FR
Code: 399173
Product detailed description
No product's description available
Additional parameters

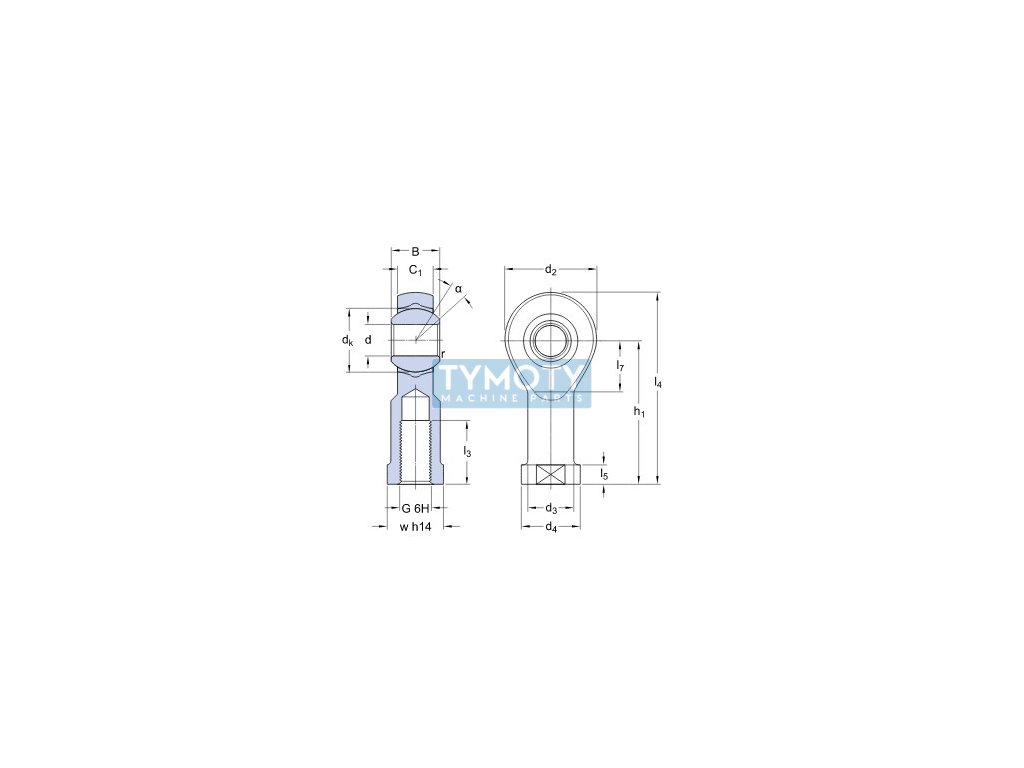

| Category: | Bearings > slippery > articulated heads > internal right-hand thread > hard chrome-PTFE FRP (SIKB..F) > d=8 mm thread M8 |
|---|---|
| Weight: | 0.046 kg |
| Angle ( ° ): | 14 |
| Diameter D (mm): | 25, 8 |
| Diameter D2 (mm): | 25 |
| Diameter d3 (mm): | 12,5 |
| Diameter d4 (mm): | 17 |
| Diameter dk (mm): | 15,8 |
| Height H1 (mm): | 36 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 12 |
| Length l4 (mm): | 50 |
| Length l5 (mm): | 5 |
| Length l7 (mm): | 12 |
| Manufacturer's brand: | SKF |
| Material: | steel-PTFE FRP |
| Maximum temperature °C: | + 75 |
| Minimum temperature °C: | - 40 |
| Radius r (mm): | 0,3 |
| Seal: | without gaskets |
| Thread G: | M 8 |
| Width B (mm): | 12 |
| Width C1 (mm): | 9,5 |
| Značení: | SIKB 8 F |
| Typ: | kloubová hlavice |
