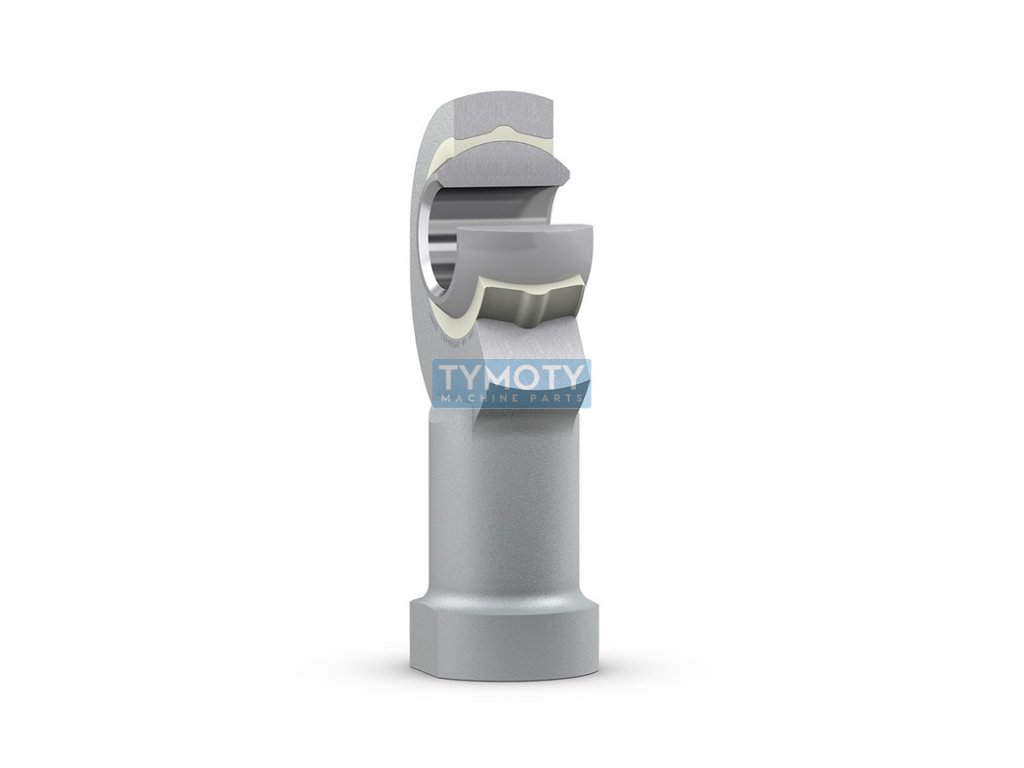

SKF SIKB 22 F knuckle head, internal right-hand thread, steel/PTFE FRP
Code: 399096
Product detailed description
No product's description available
Additional parameters

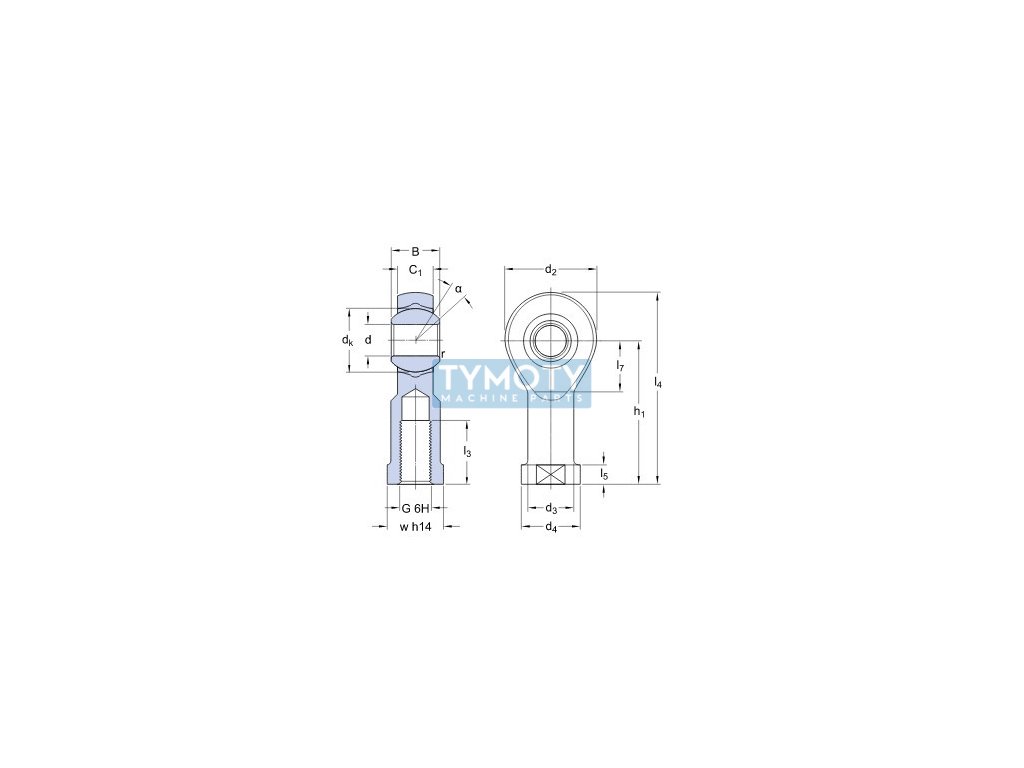

| Category: | Bearings > slippery > articulated heads > internal right-hand thread > hard chrome-PTFE FRP (SIKB..F) > d=22 mm thread M22x1.5 |
|---|---|
| Weight: | 0.492 kg |
| Angle ( ° ): | 15 |
| Diameter D (mm): | 55, 22 |
| Diameter D2 (mm): | 55 |
| Diameter d3 (mm): | 30 |
| Diameter d4 (mm): | 40 |
| Diameter dk (mm): | 38,1 |
| Height H1 (mm): | 84 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 33 |
| Length l4 (mm): | 114 |
| Length l5 (mm): | 12 |
| Length l7 (mm): | 27 |
| Manufacturer's brand: | SKF |
| Material: | steel-PTFE FRP |
| Maximum temperature °C: | + 75 |
| Minimum temperature °C: | - 40 |
| Radius r (mm): | 0,3 |
| Thread G: | M 22x1,5 |
| Width B (mm): | 28 |
| Width C1 (mm): | 21 |
| Značení: | SIKB 22 F |
| Typ: | kloubová hlavice |
