SKF SIKB 16 F knuckle head, internal right-hand thread, steel/PTFE FRP
Code: 399092
Product detailed description
No product's description available

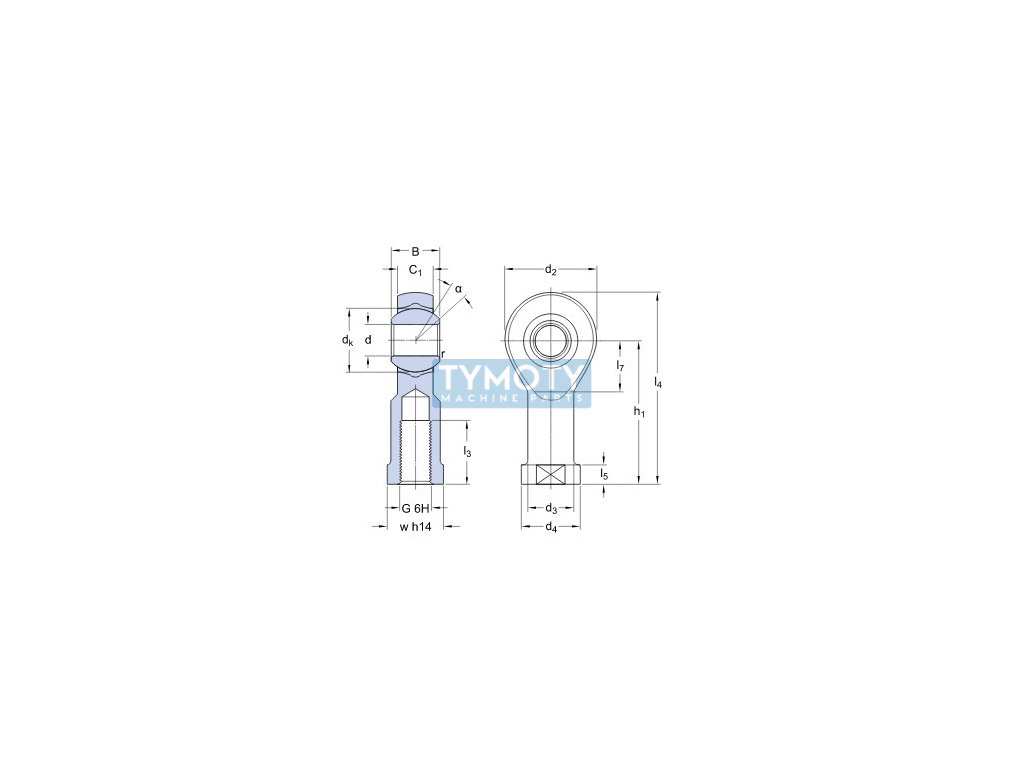

Additional parameters
| Category: | Bearings > slippery > articulated heads > internal right-hand thread > hard chrome-PTFE FRP (SIKB..F) > d=16 mm thread M16 |
|---|---|
| Weight: | 0.226 kg |
| Angle ( ° ): | 15 |
| Diameter D (mm): | 16, 43 |
| Diameter D2 (mm): | 43 |
| Diameter d3 (mm): | 22 |
| Diameter d4 (mm): | 29 |
| Diameter dk (mm): | 28,5 |
| Height H1 (mm): | 64 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 24 |
| Length l4 (mm): | 87 |
| Length l5 (mm): | 8 |
| Length l7 (mm): | 21 |
| Manufacturer's brand: | SKF |
| Material: | steel-PTFE FRP |
| Maximum temperature °C: | + 75 |
| Minimum temperature °C: | - 40 |
| Radius r (mm): | 0,3 |
| Thread G: | M 16 |
| Width B (mm): | 21 |
| Width C1 (mm): | 15,5 |
| Značení: | SIKB 16 F |
| Typ: | kloubová hlavice |
