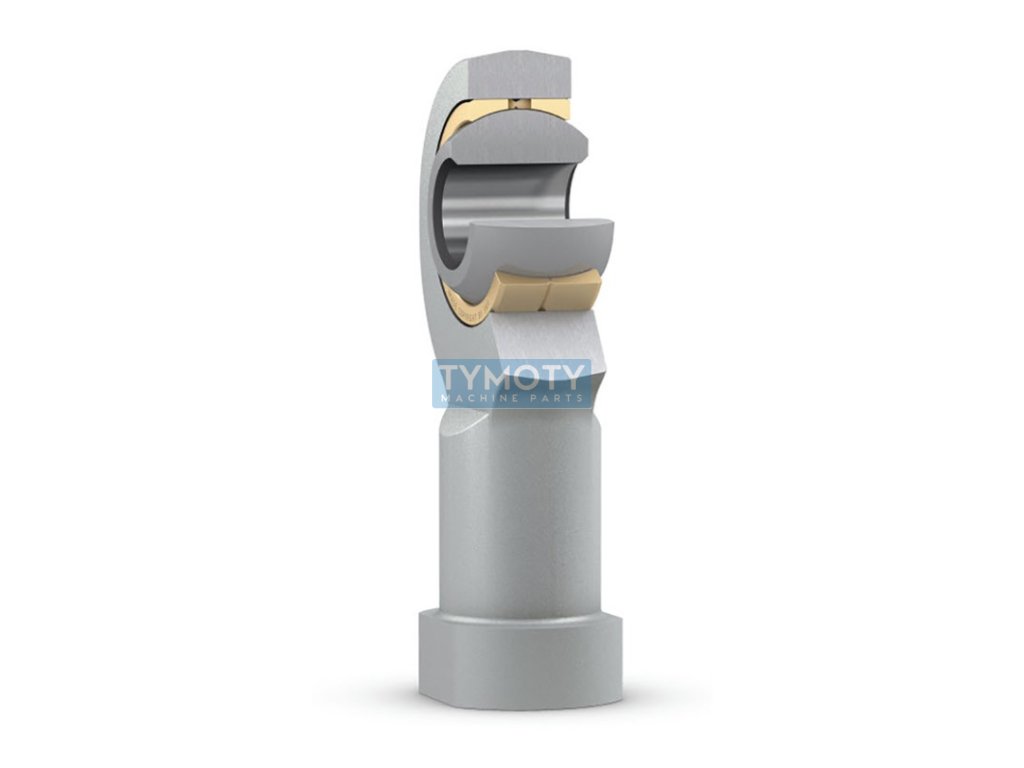

SKF SIKAC 5 M articulated head
Code: 399028
Product detailed description
No product's description available

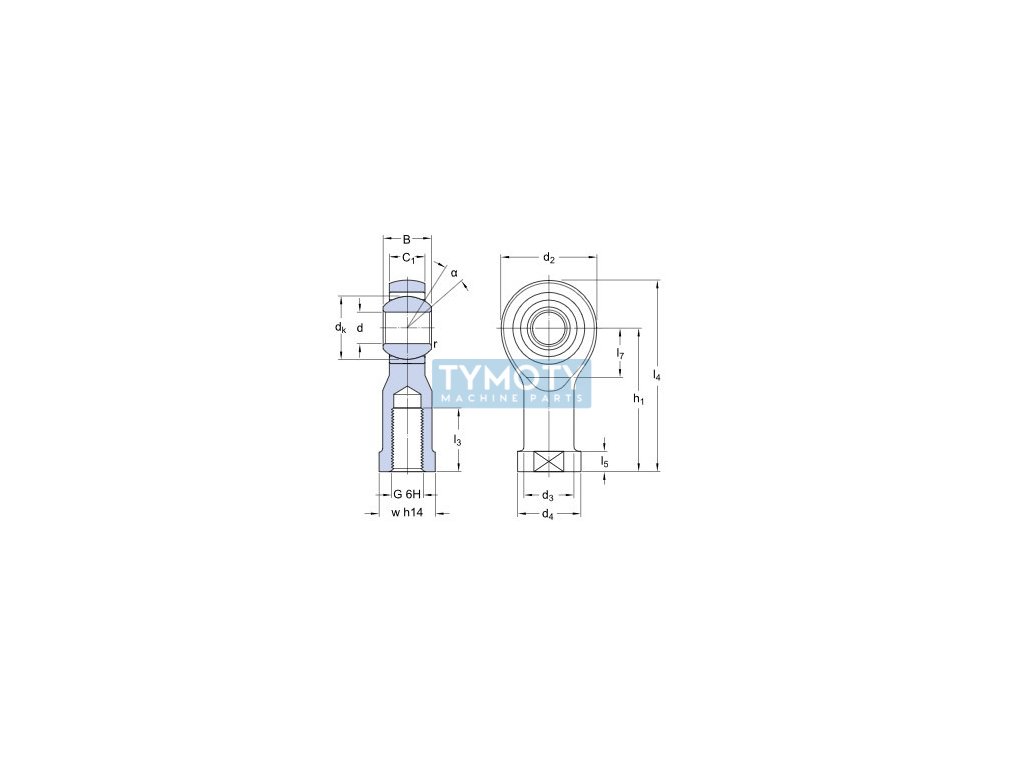

Additional parameters
| Category: | Bearings > slippery > articulated heads > internal right-hand thread > steel-bronze (SIKAC..M, GIKR..PB) > d=5 mm thread M5 |
|---|---|
| Weight: | 0.019 kg |
| Angle ( ° ): | 13 |
| Diameter D (mm): | 19, 5 |
| Diameter D2 (mm): | 19 |
| Diameter d3 (mm): | 9 |
| Diameter d4 (mm): | 12 |
| Diameter dk (mm): | 11,1 |
| Height H1 (mm): | 27 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 8 |
| Length l4 (mm): | 37 |
| Length l5 (mm): | 4 |
| Length l7 (mm): | 9 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,3 |
| Seal: | without gaskets |
| Thread G: | M 5 |
| Width B (mm): | 8 |
| Width C1 (mm): | 7,5 |
| Značení: | SIKAC 5 M |
| Typ: | kloubová hlavice |
