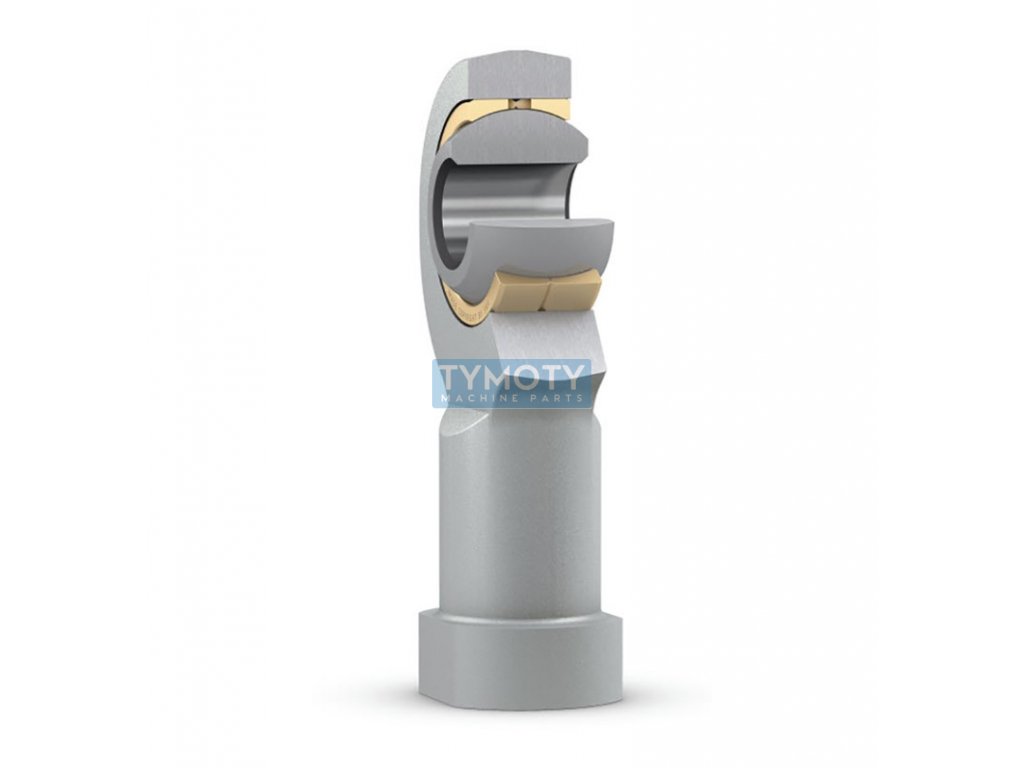

SKF SIKAC 30 M/VZ019 articulated head
Code: 399043
Product detailed description
No product's description available
Additional parameters

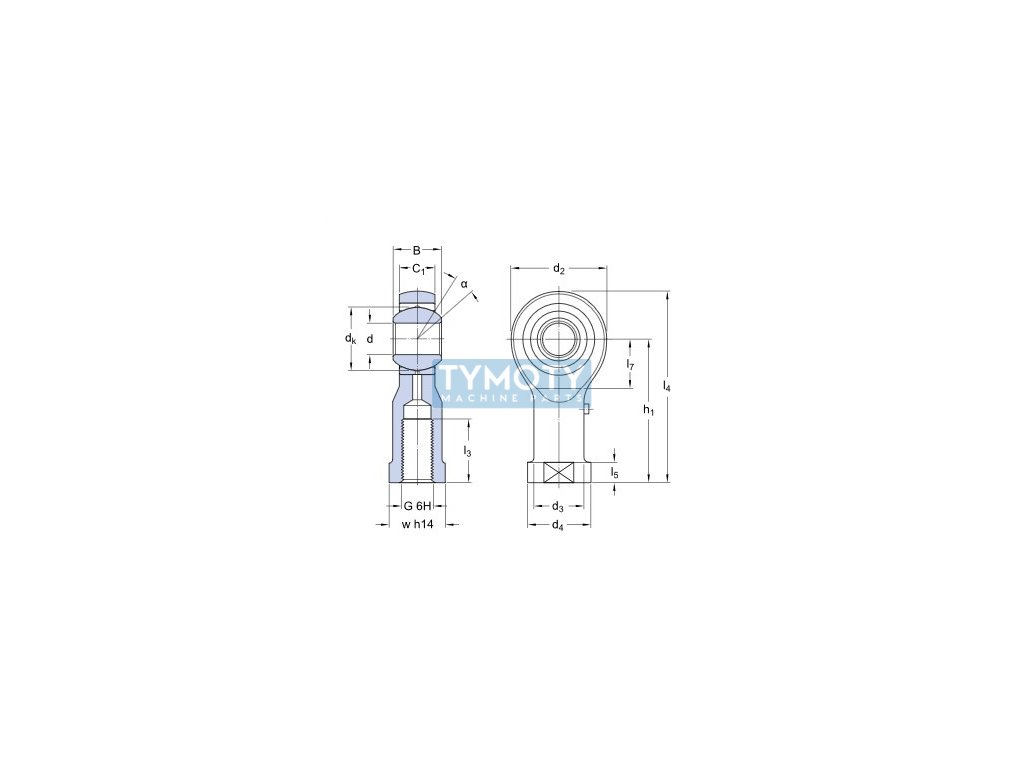

| Category: | Bearings > slippery > articulated heads > internal right-hand thread > steel-bronze (SIKAC..M, GIKR..PB) > d=30 mm thread M27x2 |
|---|---|
| Weight: | 1.221 kg |
| Angle ( ° ): | 17 |
| Diameter D (mm): | 30, 71 |
| Diameter D2 (mm): | 71 |
| Diameter d3 (mm): | 40 |
| Diameter d4 (mm): | 52 |
| Diameter dk (mm): | 50,8 |
| Height H1 (mm): | 110 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 45 |
| Length l4 (mm): | 146 |
| Length l5 (mm): | 15 |
| Length l7 (mm): | 35 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,3 |
| Thread G: | M 27x2 |
| Width B (mm): | 37 |
| Width C1 (mm): | 27 |
| Značení: | SIKAC 30 M/VZ019 |
| Typ: | kloubová hlavice |
