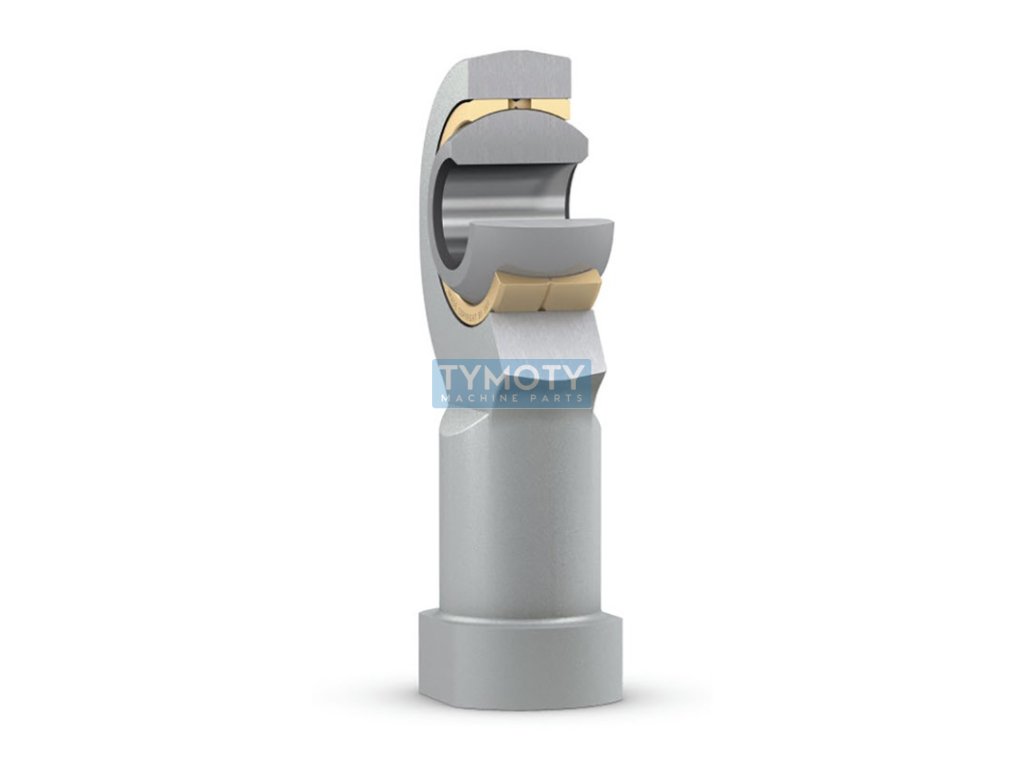

SKF SIKAC 25 M articulated head
Code: 399041
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > slippery > articulated heads > internal right-hand thread > steel-bronze (SIKAC..M, GIKR..PB) > d=25 mm thread M24x2 |
|---|---|
| Weight: | 0.735 kg |
| Angle ( ° ): | 15 |
| Diameter D (mm): | 25, 61 |
| Diameter D2 (mm): | 61 |
| Diameter d3 (mm): | 33,5 |
| Diameter d4 (mm): | 44 |
| Diameter dk (mm): | 42,8 |
| Height H1 (mm): | 94 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 36 |
| Length l4 (mm): | 125 |
| Length l5 (mm): | 12 |
| Length l7 (mm): | 30 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,3 |
| Thread G: | M 24x2 |
| Width B (mm): | 31 |
| Width C1 (mm): | 23 |
| Značení: | SIKAC 25 M |
| Typ: | kloubová hlavice |
