SKF SIKAC 20 M articulated head
Code: 399039
Product detailed description
No product's description available

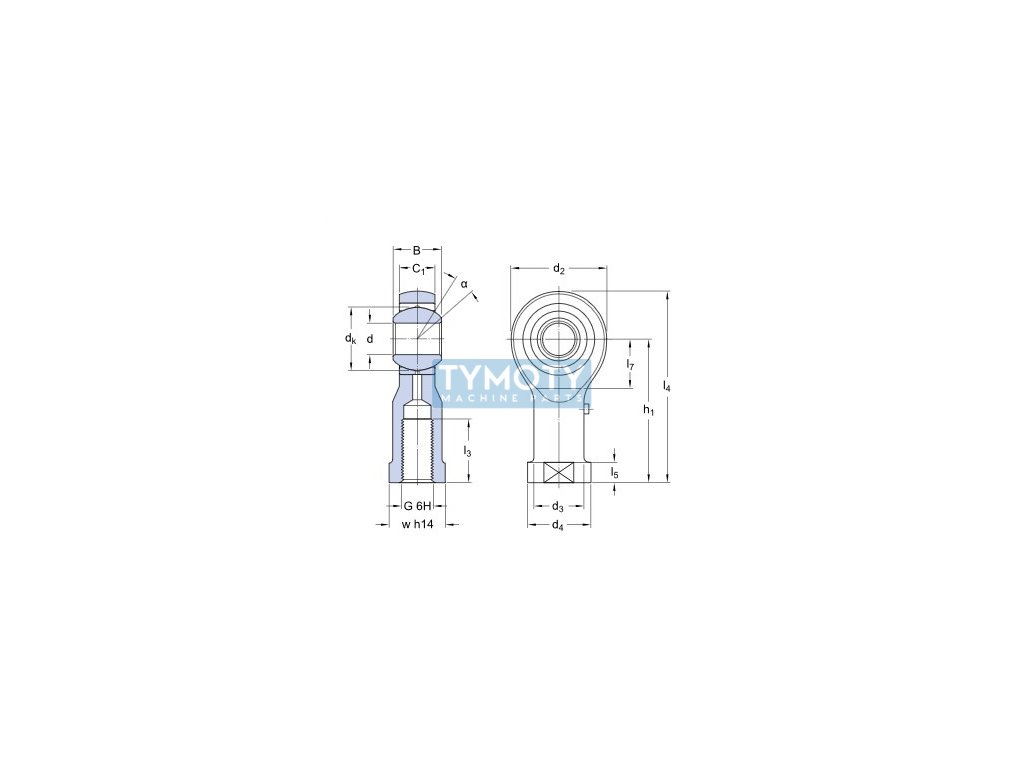

Additional parameters
| Category: | Bearings > slippery > articulated heads > internal right-hand thread > steel-bronze (SIKAC..M, GIKR..PB) > d=20 mm thread M20x1.5 |
|---|---|
| Weight: | 0.403 kg |
| Angle ( ° ): | 15 |
| Diameter D (mm): | 20, 51 |
| Diameter D2 (mm): | 51 |
| Diameter d3 (mm): | 25 |
| Diameter d4 (mm): | 37 |
| Diameter dk (mm): | 34,9 |
| Height H1 (mm): | 77 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 30 |
| Length l4 (mm): | 103 |
| Length l5 (mm): | 10 |
| Length l7 (mm): | 25 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,3 |
| Seal: | without gaskets |
| Thread G: | M 20x1,5 |
| Width B (mm): | 25 |
| Width C1 (mm): | 18,5 |
| Značení: | SIKAC 20 M |
| Typ: | kloubová hlavice |
