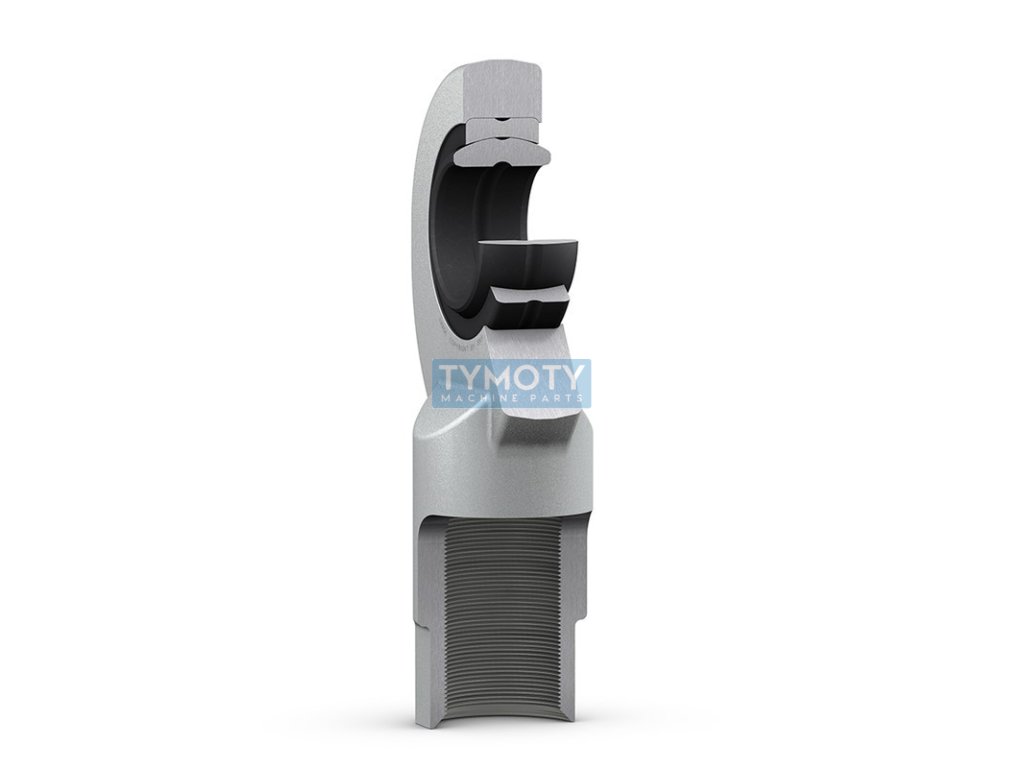

SKF SI 6 E articulated head
Code: 399000
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > slippery > articulated heads > internal right-hand thread > steel-steel (SI..ES, GIR..DO, DSI..ES, EFN..501) > d=6 mm thread M6 |
|---|---|
| Weight: | 0.021 kg |
| Angle ( ° ): | 13 |
| Diameter D (mm): | 22, 6 |
| Diameter D2 (mm): | 22 |
| Diameter d4 (mm): | 11 |
| Diameter dk (mm): | 10 |
| Height H1 (mm): | 30 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 11 |
| Length l4 (mm): | 43 |
| Length l5 (mm): | 8 |
| Length l7 (mm): | 9 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,3 |
| Thread G: | M6 |
| Width B (mm): | 6 |
| Width C1 (mm): | 4,5 |
| Značení: | SI 6 E |
| Typ: | kloubová hlavice |
