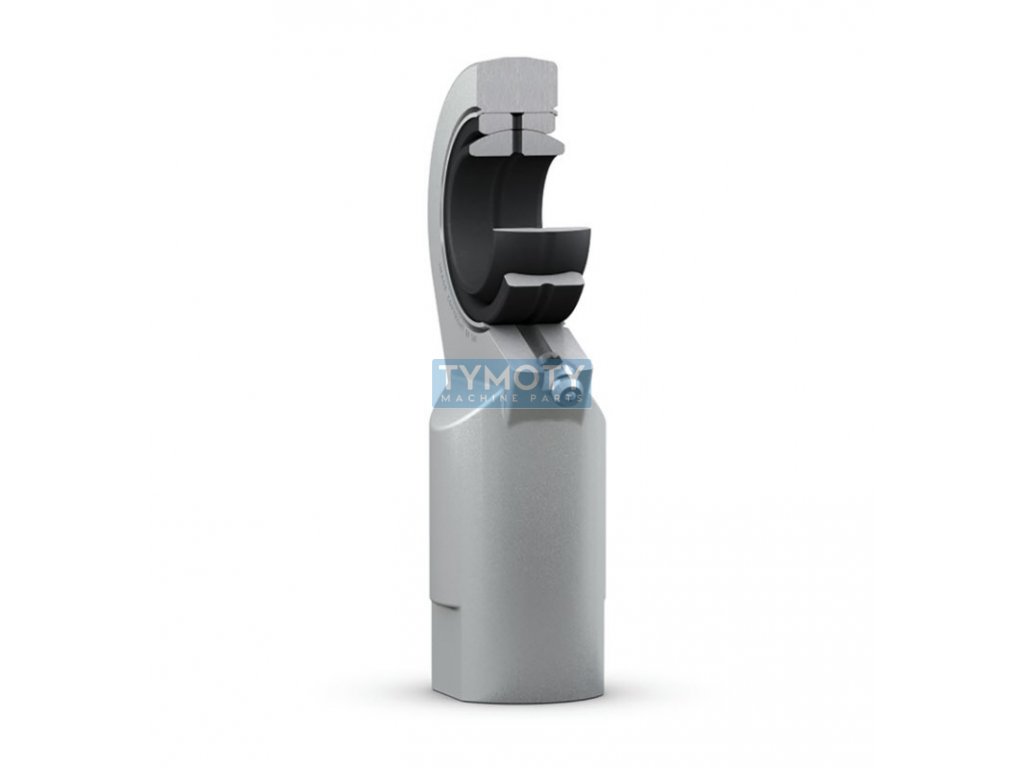

SKF SI 17 ES joint head
Code: 399005
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > slippery > articulated heads > internal right-hand thread > steel-steel (SI..ES, GIR..DO, DSI..ES, EFN..501) > d=17 mm thread M16 |
|---|---|
| Weight: | 0.248 kg |
| Angle ( ° ): | 10 |
| Diameter D (mm): | 17, 47 |
| Diameter D2 (mm): | 47 |
| Diameter d4 (mm): | 25 |
| Diameter dk (mm): | 25 |
| Height H1 (mm): | 67 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 24 |
| Length l4 (mm): | 92 |
| Length l5 (mm): | 15 |
| Length l7 (mm): | 22 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,3 |
| Seal: | without gaskets |
| Thread G: | M16 |
| Width B (mm): | 14 |
| Width C1 (mm): | 11,5 |
| Značení: | SI 17 ES |
| Typ: | kloubová hlavice |
