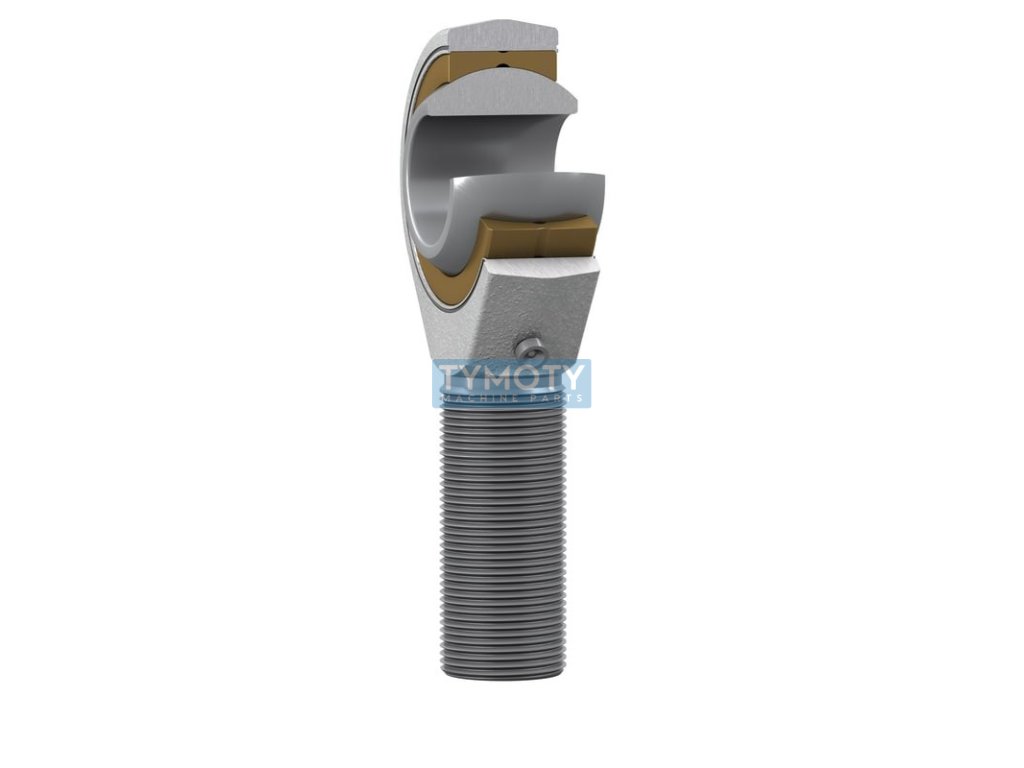

SKF SAKAC 20 M articulated head
Code: 399149
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > slippery > articulated heads > external right hand thread > steel-bronze (SAKAC..M, GAKR..PB) > d=20 mm thread M20x1.5 |
|---|---|
| Weight: | 0.34 kg |
| Angle ( ° ): | 14 |
| Diameter D (mm): | 20, 51 |
| Diameter D2 (mm): | 51 |
| Diameter dk (mm): | 34,9 |
| Height H (mm): | 78 |
| Hole profile: | cylindrical |
| Length L1 (mm): | 45 |
| Length L2 (mm): | 106 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,3 |
| Seal: | without gaskets |
| Thread G: | M 20x1,5 |
| Width B (mm): | 25 |
| Width C1 (mm): | 18,5 |
| Značení: | SAKAC 20 M |
| Typ: | kloubová hlavice |
