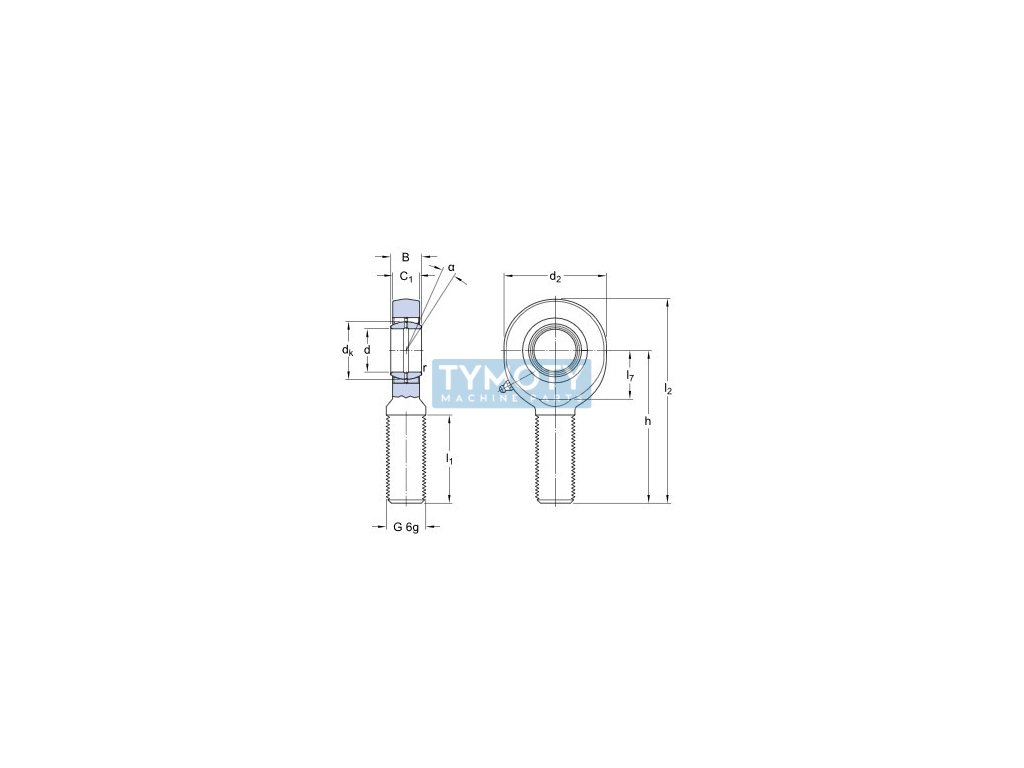

SKF SA 15 ES joint head
Code: 399157
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > slippery > articulated heads > external right hand thread > steel-steel (SA..ES, GAR..DO, DSA..ES, EMN..501) > d=15 mm thread M14 |
|---|---|
| Weight: | 0.13 kg |
| Angle ( ° ): | 8 |
| Diameter D (mm): | 15, 41 |
| Diameter D2 (mm): | 41 |
| Diameter dk (mm): | 22 |
| Height H (mm): | 63 |
| Hole profile: | cylindrical |
| Length L1 (mm): | 34 |
| Length L2 (mm): | 85 |
| Length l7 (mm): | 19 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,3 |
| Seal: | without gaskets |
| Thread G: | M14 |
| Width B (mm): | 12 |
| Width C1 (mm): | 10,5 |
| Značení: | SA 15 ES |
| Typ: | kloubová hlavice |
