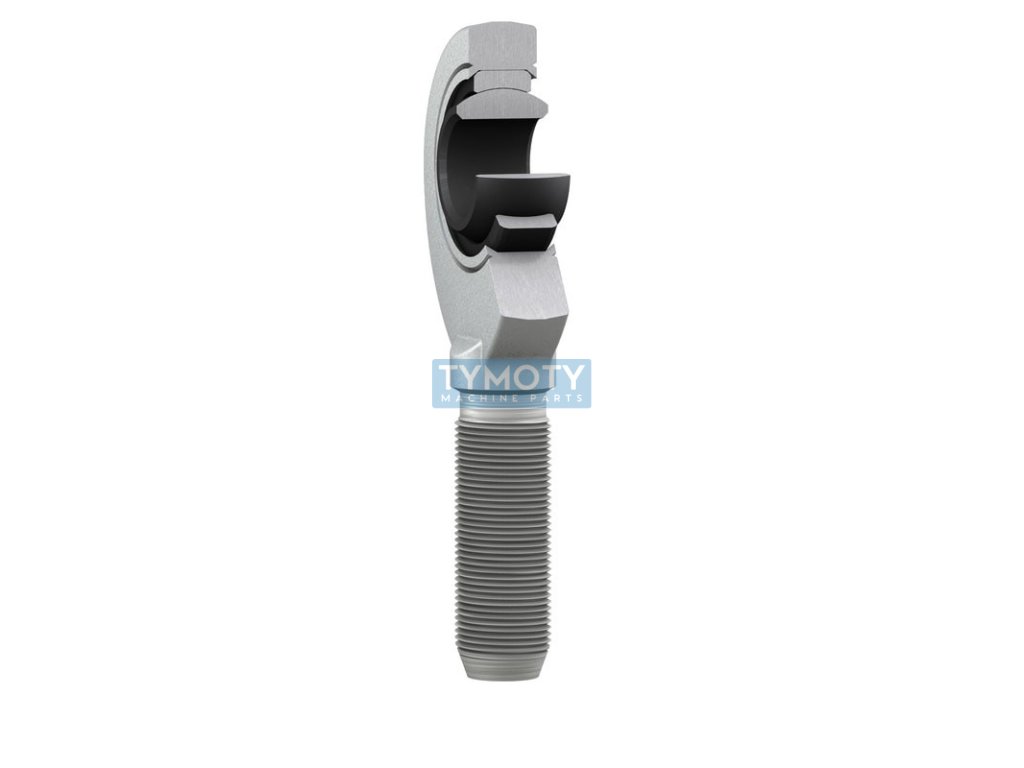

SKF SA 12 E articulated head
Code: 399108
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > slippery > articulated heads > external right hand thread > steel-steel (SA..ES, GAR..DO, DSA..ES, EMN..501) > d=12 mm thread M12 |
|---|---|
| Weight: | 0.08 kg |
| Angle ( ° ): | 10 |
| Diameter D (mm): | 35, 12 |
| Diameter D2 (mm): | 35 |
| Diameter dk (mm): | 18 |
| Height H (mm): | 54 |
| Hole profile: | cylindrical |
| Length L1 (mm): | 28 |
| Length L2 (mm): | 73 |
| Length l7 (mm): | 17 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,3 |
| Seal: | without gaskets |
| Thread G: | M12 |
| Width B (mm): | 10 |
| Width C1 (mm): | 8,5 |
| Značení: | SA 12 E |
| Typ: | kloubová hlavice |
