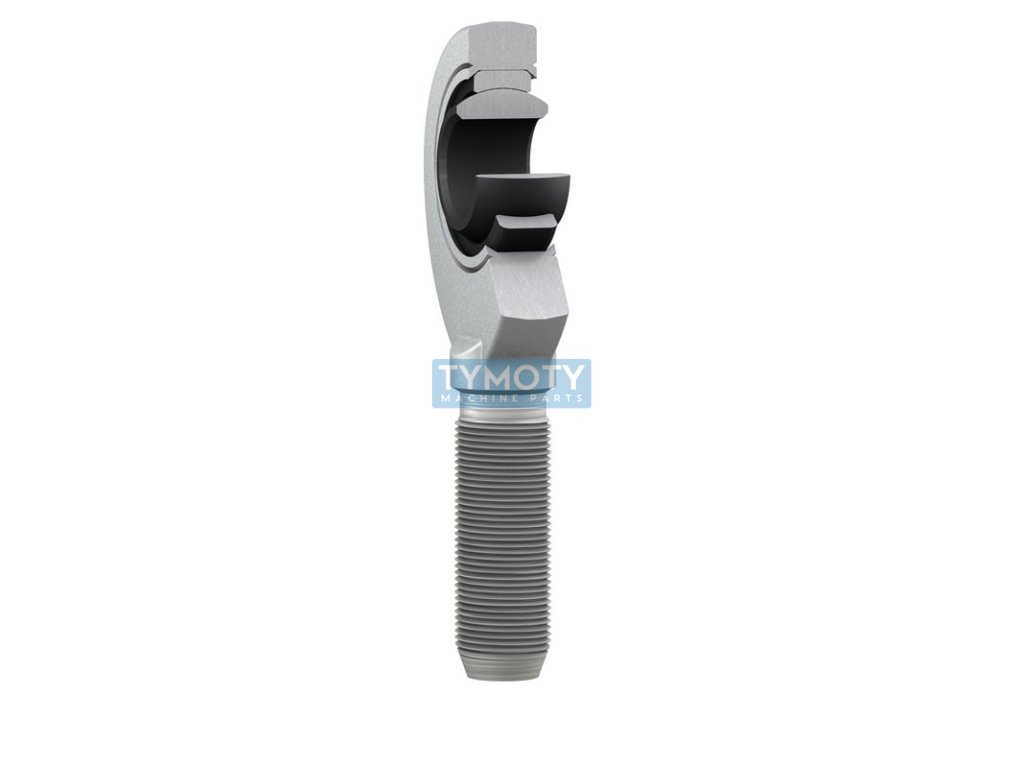

SKF SA 10 E articulated head
Code: 399107
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > slippery > articulated heads > external right hand thread > steel-steel (SA..ES, GAR..DO, DSA..ES, EMN..501) > d=10 mm thread M10 |
|---|---|
| Weight: | 0.05 kg |
| Angle ( ° ): | 12 |
| Diameter D (mm): | 30, 10 |
| Diameter D2 (mm): | 30 |
| Diameter dk (mm): | 16 |
| Height H (mm): | 48 |
| Hole profile: | cylindrical |
| Length L1 (mm): | 26 |
| Length L2 (mm): | 65 |
| Length l7 (mm): | 13 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,3 |
| Seal: | without gaskets |
| Thread G: | M10 |
| Width B (mm): | 9 |
| Width C1 (mm): | 7,5 |
| Značení: | SA 10 E |
| Typ: | kloubová hlavice |
