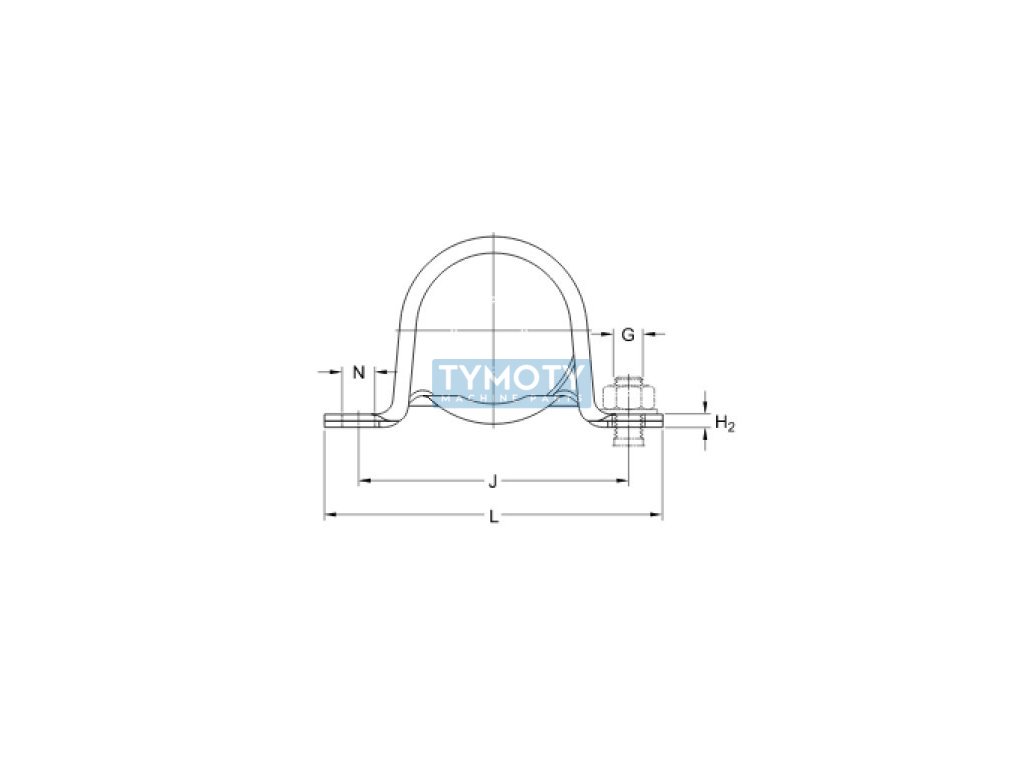

SKF P 47 stationary sheet metal bearing housing
Code: 383624
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > bearing bodies > for clamping bearings > standing > sheet metal (P.., GEH..BT) > 204 |
|---|---|
| Weight: | 0.085 kg |
| Diameter D (mm): | 47 |
| Height H (mm): | 50 |
| Height H1 (mm): | 25,2 |
| Height H2 (mm): | 3 |
| Length L (mm): | 99 |
| Manufacturer's brand: | SKF |
| Material: | cast steel |
| Pitch J (mm): | 76 |
| Spacing N (mm): | 9,6 |
| Thread G: | 8 |
| Width A1 (mm): | 21 |
| Width B (mm): | 50 |
| Značení: | P 47 |
| Typ: | stojaté ložiskové těleso |
