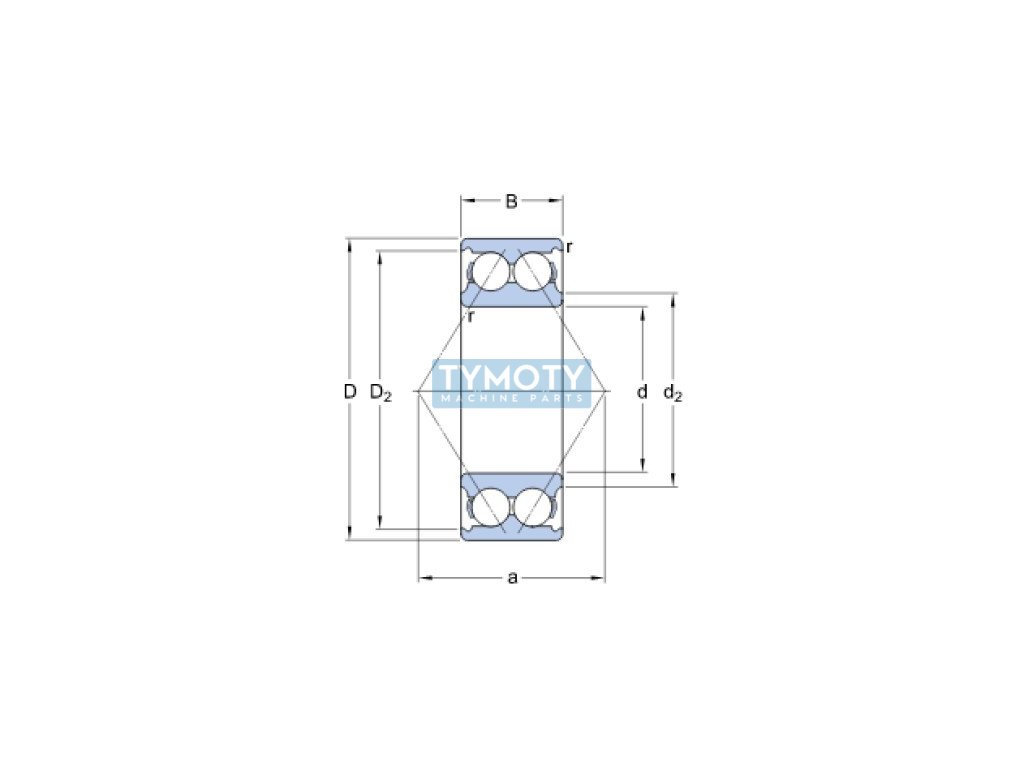

SKF 3204 ATN9 angular contact ball bearing
Code: 327198
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > ball bearing with diagonal contact > 32.. (52..) double row > 3204 (5204) > open |
|---|---|
| Weight: | 0.147 kg |
| Angle ( ° ): | 30° |
| Cage: | polyamide |
| Clearance: | normal |
| Diameter D (mm): | 20, 47 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | without gaskets |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 20,6 |
| Značení: | 3204 ATN9 |
| Typ: | kuličkové ložisko s kosoúhlým stykem |
