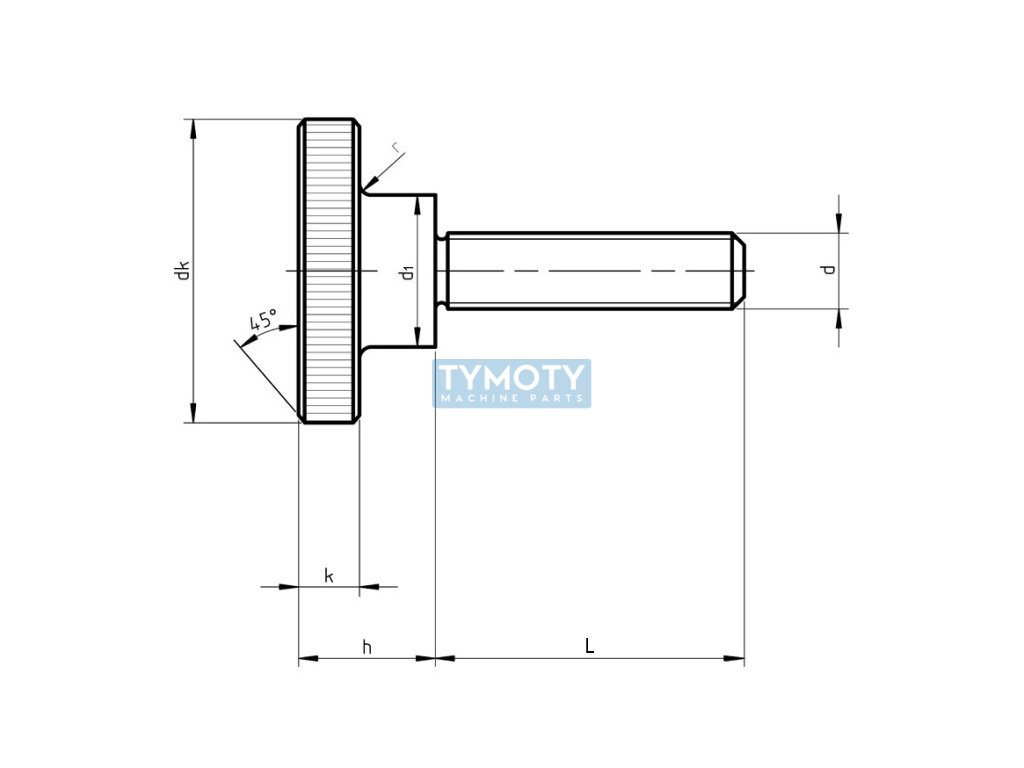

Screw with cylindrical knurled head DIN 464 M5x12
Code: 834669
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > cap screws > grooved DIN 464 > steel 5.8 without treatment |
|---|---|
| Weight: | 0.016 kg |
| CSN standard: | 021161 |
| Diameter D (mm): | M5 |
| Diameter d1 (mm): | 10 |
| Diameter dk (mm): | 20 |
| DIN standard: | 464 |
| Fortress class: | 5,8 |
| Head shape: | cylindrical |
| Height H (mm): | 12 |
| Height k (mm): | 4 |
| Length L (mm): | 12 |
| Material: | steel |
| Pitch: | 0,80 |
| Surface finish: | without modification |
| Thread type: | metric |
