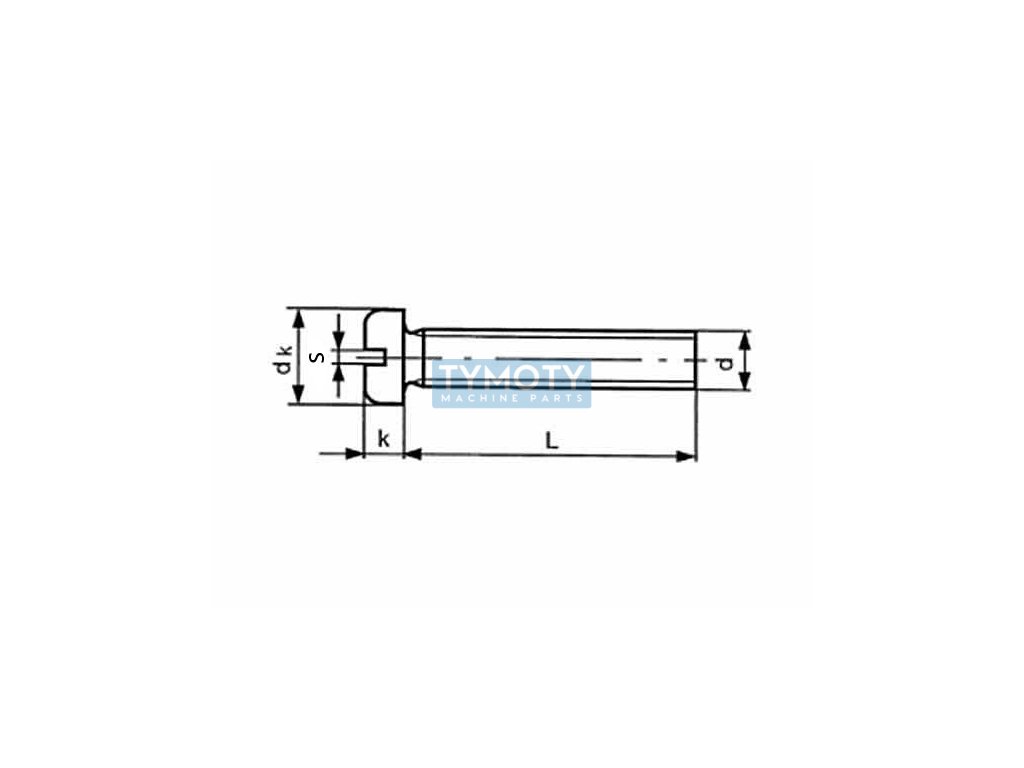

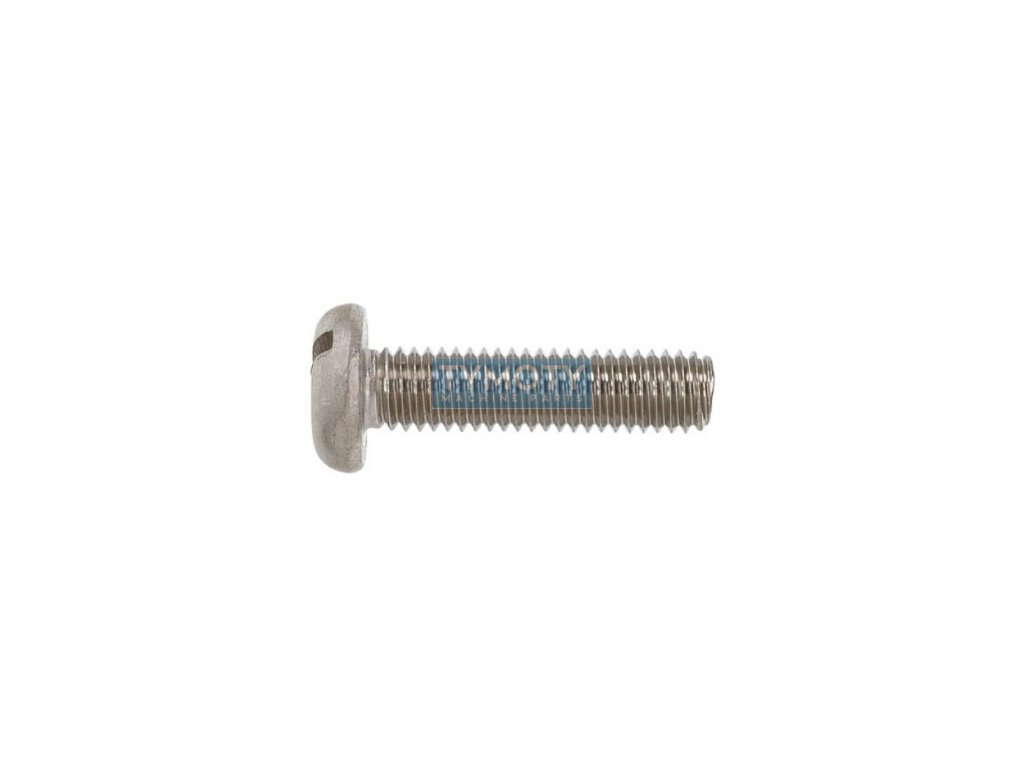

Screw low cylinder head - groove DIN 85 M8x20 stainless steel A2
Code: 892646
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > screws with rounded head > DIN 85 groove > stainless steel A2 |
|---|---|
| Weight: | 0.013 kg |
| CSN standard: | 021137 |
| Diameter D (mm): | M8 |
| Diameter dk (mm): | 16 |
| DIN standard: | 85 |
| Fortress class: | A2 |
| Groove type: | ongoing |
| Head shape: | cylindrical |
| Height k (mm): | 4,8 |
| ISO standard: | 1580 |
| Length L (mm): | 20 |
| Material: | stainless steel |
| Pitch: | 1,25 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width s (mm): | 1,9 |
