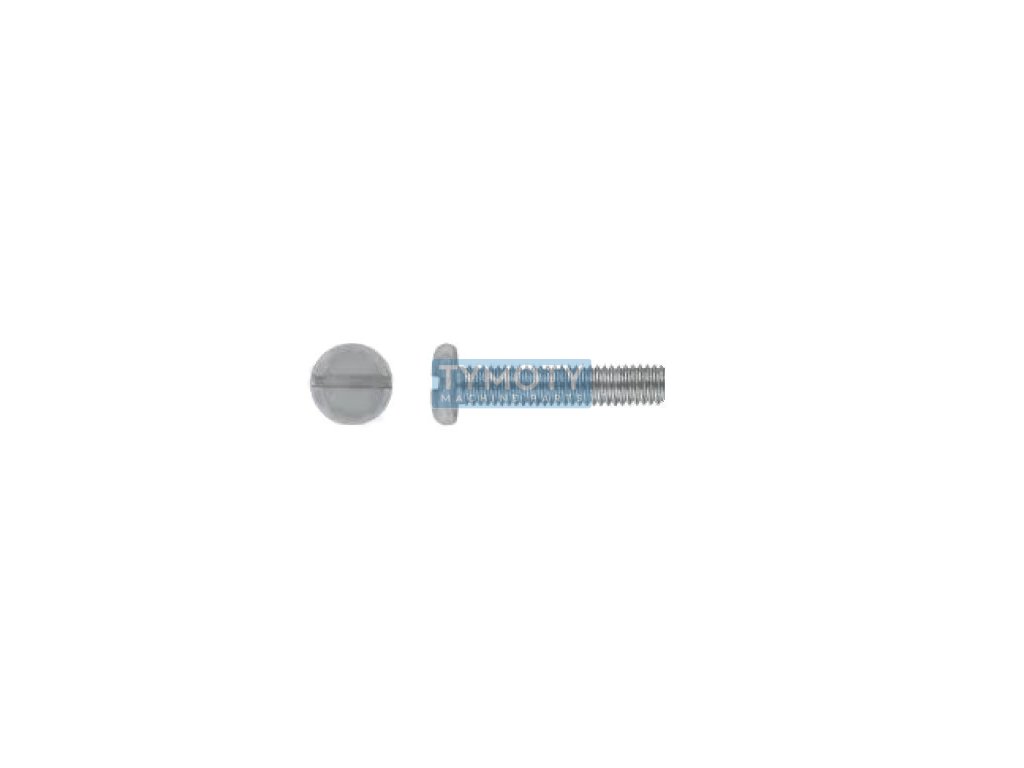

Screw low cylinder head - groove DIN 85 M6x50 galvanized
Code: 825662
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > screws with rounded head > DIN 85 groove > galvanized steel 4.8 |
|---|---|
| Weight: | 0.011 kg |
| CSN standard: | 021137 |

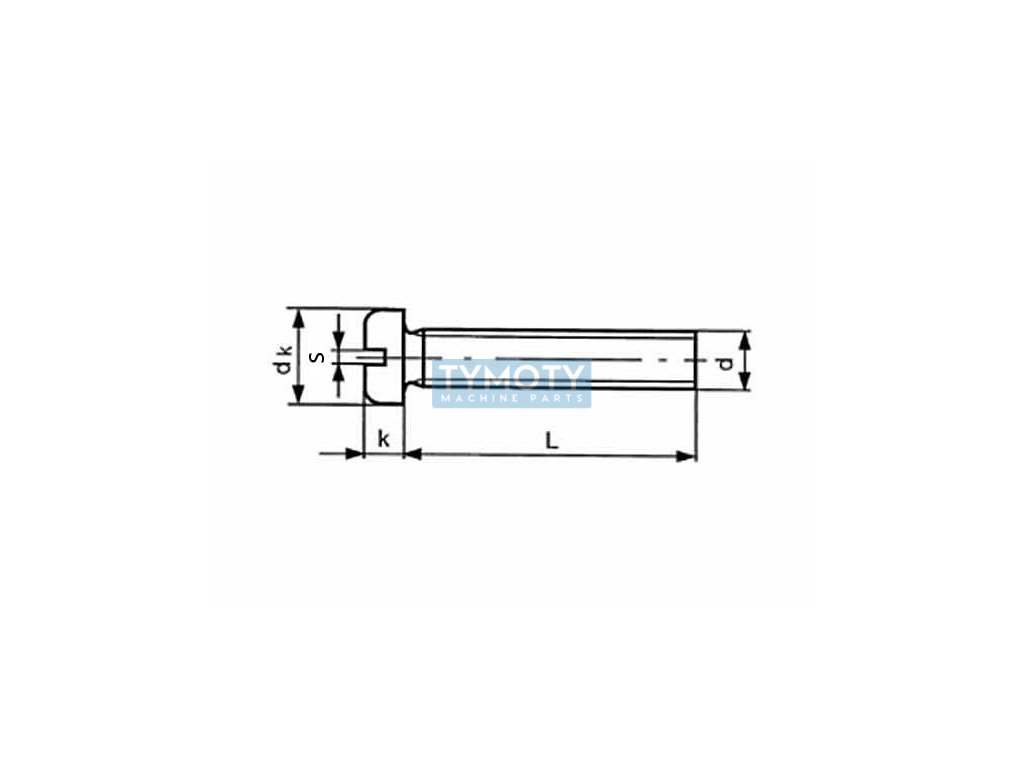

| Diameter D (mm): | M6 |
| Diameter dk (mm): | 12 |
| DIN standard: | 85 |
| Fortress class: | 4,8 |
| Groove type: | ongoing |
| Head shape: | cylindrical |
| Height k (mm): | 3,6 |
| ISO standard: | 1580 |
| Length L (mm): | 50 |
| Material: | steel |
| Pitch: | 1,00 |
| Surface finish: | zinc white |
| Thread type: | metric |
| Width s (mm): | 1,6 |
