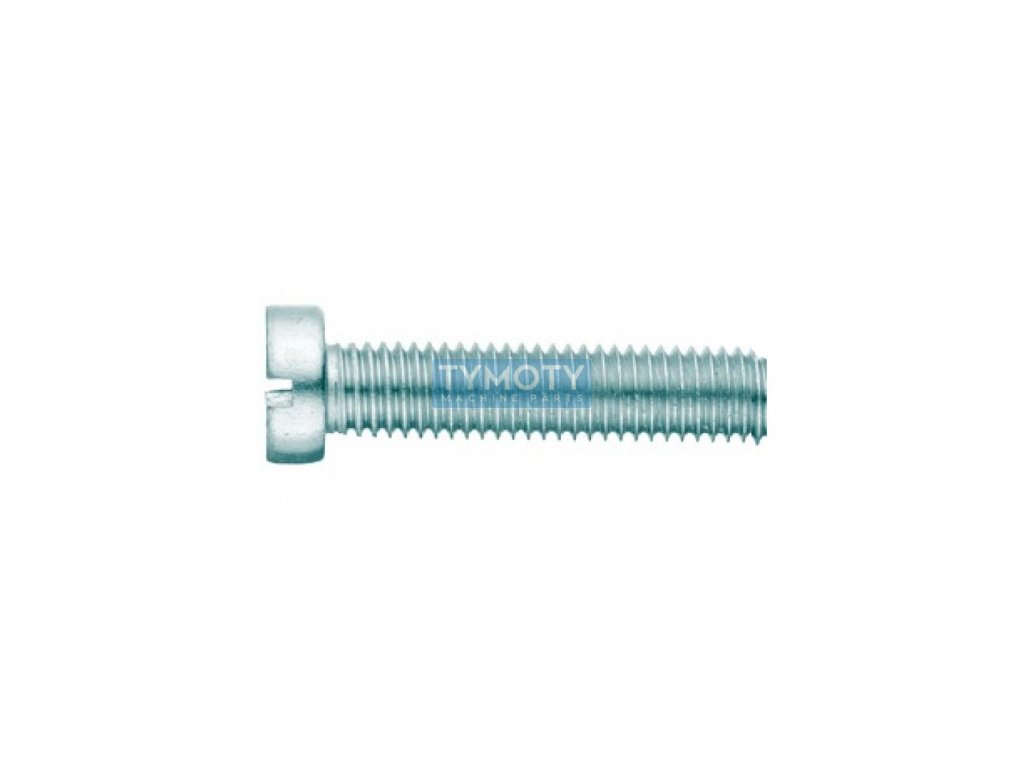

Screw cylindrical head - groove DIN 84 M5x18 galvanized
Code: 825292
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > cap screws > DIN 84 groove > galvanized steel 4.8 |
|---|---|
| Weight: | 0.004 kg |
| CSN standard: | 021131 |
| Diameter D (mm): | M5 |
| Diameter dk (mm): | 8,5 |
| DIN standard: | 84 |
| Fortress class: | 4,8 |
| Groove type: | ongoing |
| Head shape: | cylindrical |
| Height k (mm): | 3,3 |
| ISO standard: | 1207 |
| Length L (mm): | 18 |
| Material: | steel |
| Pitch: | 0,80 |
| Surface finish: | zinc white |
| Thread type: | metric |
| Width s (mm): | 1,2 |
