Screw cylindrical extra low head - hex M8x8-10.9 blackened
Code: 824947
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > cap screws > Allen key, extra low > steel 10.9 blackened |
|---|---|
| Weight: | 0.006 kg |

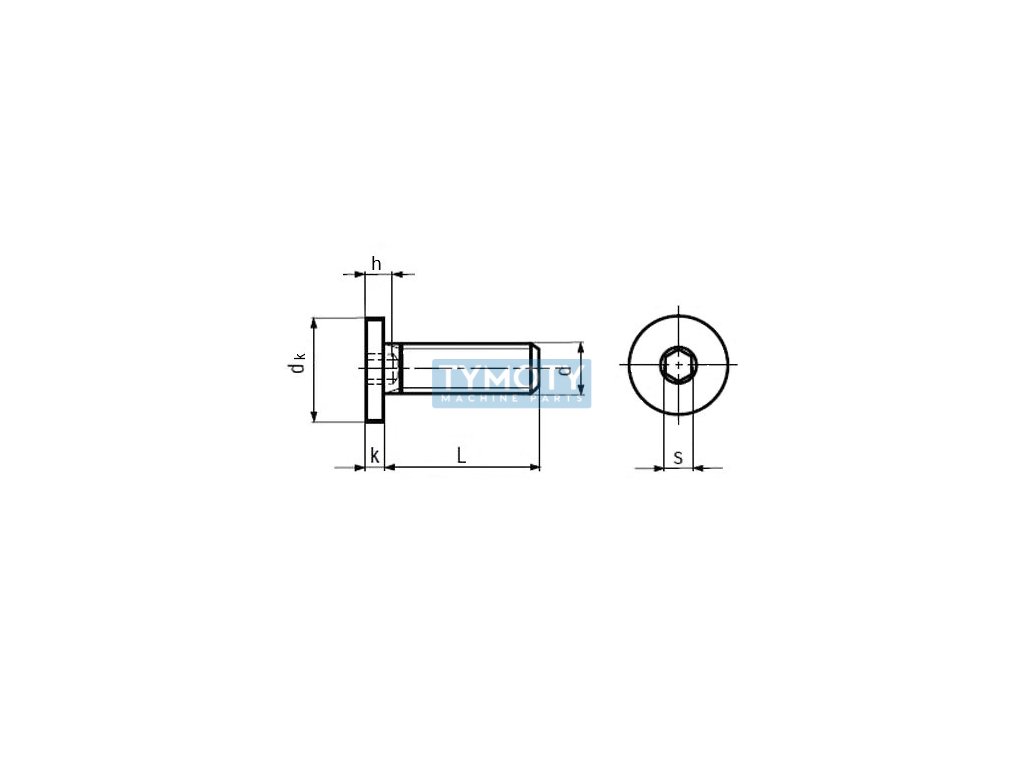

| Diameter D (mm): | M8 |
| Diameter dk (mm): | 13 |
| Fortress class: | 10,9 |
| Groove type: | internal hexagon |
| Head shape: | cylindrical |
| Height k (mm): | 1,5 |
| Length L (mm): | 8 |
| Material: | steel |
| Pitch: | 1,25 |
| Spacing t (mm): | 5 |
| Surface finish: | blackened |
| Thread type: | metric |
| Width s (mm): | 4 |
