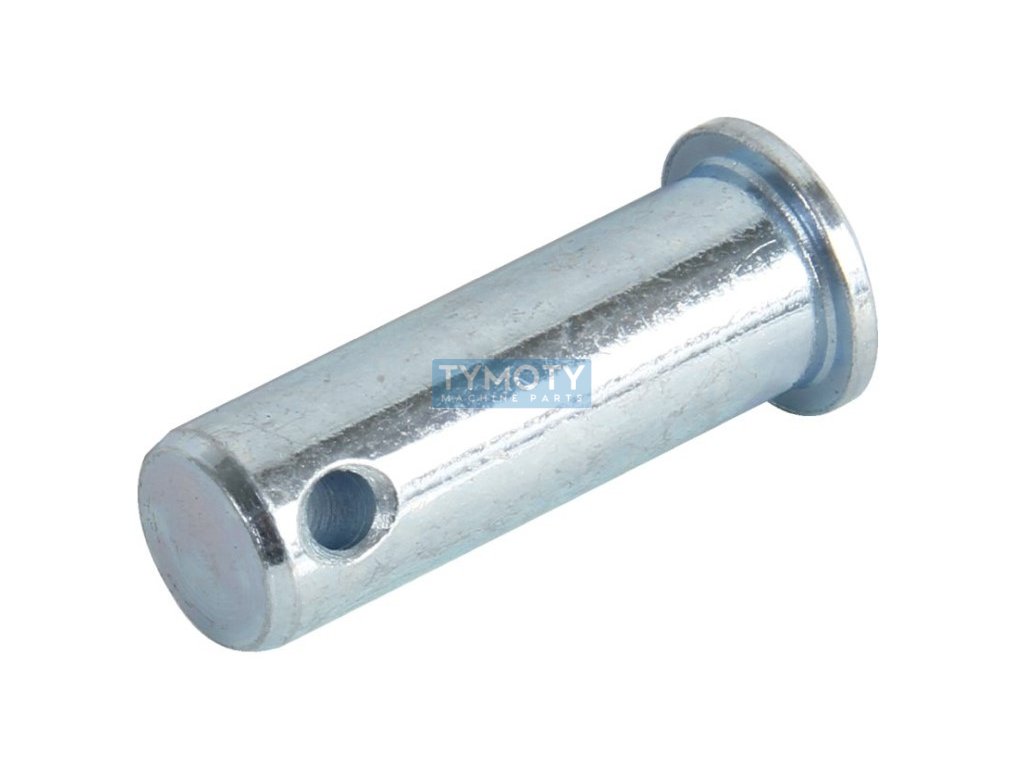

Pin with head DIN 1444B 12x50x44.5x3.2 galvanized
Code: 862848
Product detailed description
No product's description available

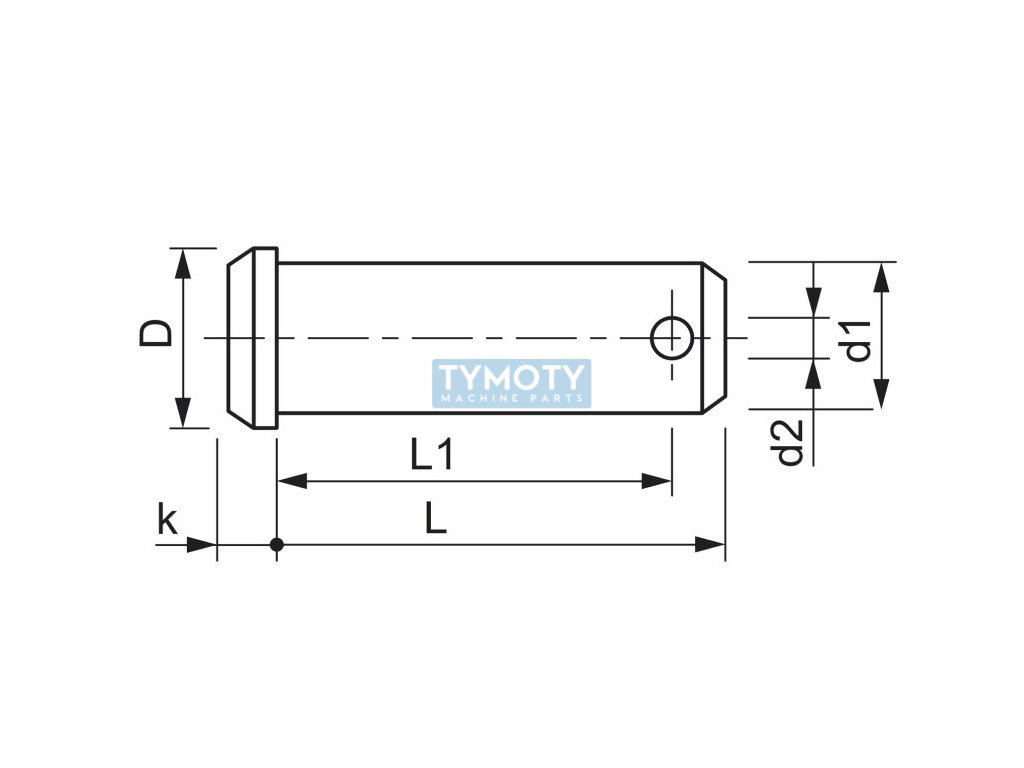

Additional parameters
| Category: | Fasteners > pins > pins DIN 1444B |
|---|---|
| Weight: | 0.053 kg |
| CSN standard: | 0222111 |
| Diameter D (mm): | 20 |
| Diameter d1 (mm): | 12 |
| Diameter D2 (mm): | 3,2 |
| DIN standard: | 1444 B |
| Height k (mm): | 4 |
| ISO standard: | 2341 |
| Length L (mm): | 50 |
| Length L1 (mm): | 44,5 |
| Material: | steel |
| Surface finish: | zinc white |
