INA RCJTZ 20-XL bearing unit
Code: 386746
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > bearing units > with Y bearings > oval with flange > eccentric bearing (RCJTZ) > 204 |
|---|---|
| Weight: | 0.61 kg |
| Color: | dark gray |

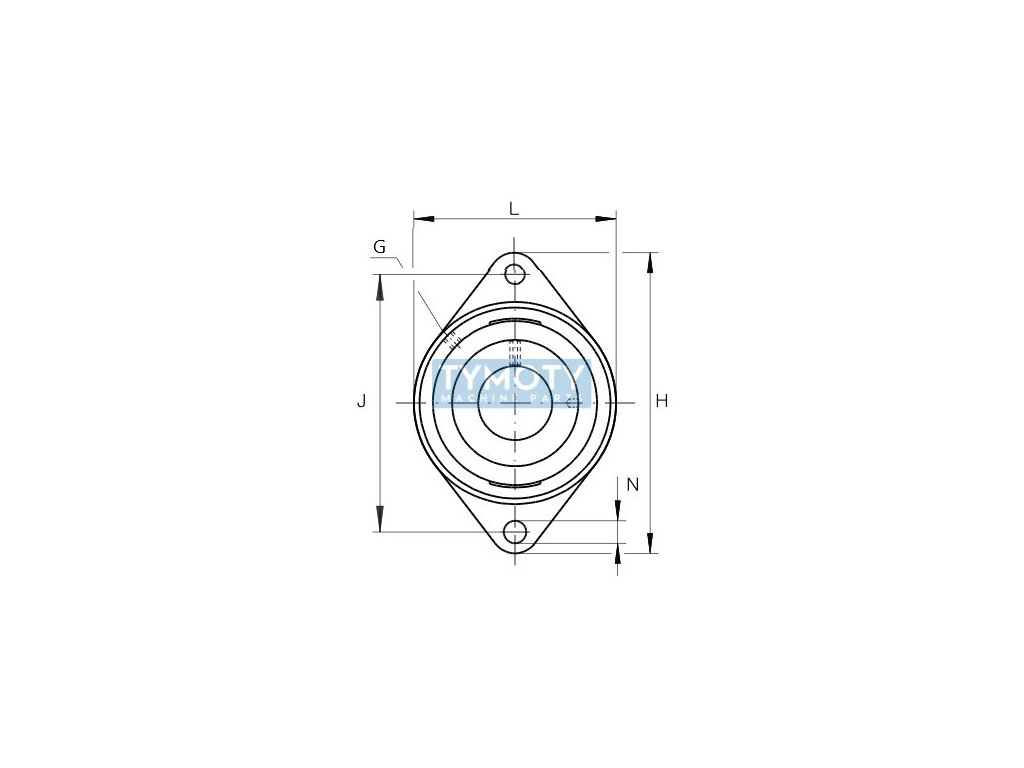

| Diameter D (mm): | 20, 55 |
| Diameter d1 (mm): | 60,5 |
| Height H (mm): | 112,5 |
| Hole profile: | cylindrical |
| Length L (mm): | 60,5 |
| Manufacturer's brand: | INA |
| Material: | gray cast iron, bearing steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Pitch J (mm): | 90 |
| Seal: | double seal |
| Spacing N (mm): | 11,5 |
| Thread G: | Rp1/8 |
| Width A (mm): | 45,6 |
| Width A1 (mm): | 31,7 |
| Width A2 (mm): | 11 |
| Width B (mm): | 43,7 |
| Číslo výrobce: | 000831662-0000 |
| Značení: | RCJTZ20-XL |
| Typ: | ložisková jednotka |
