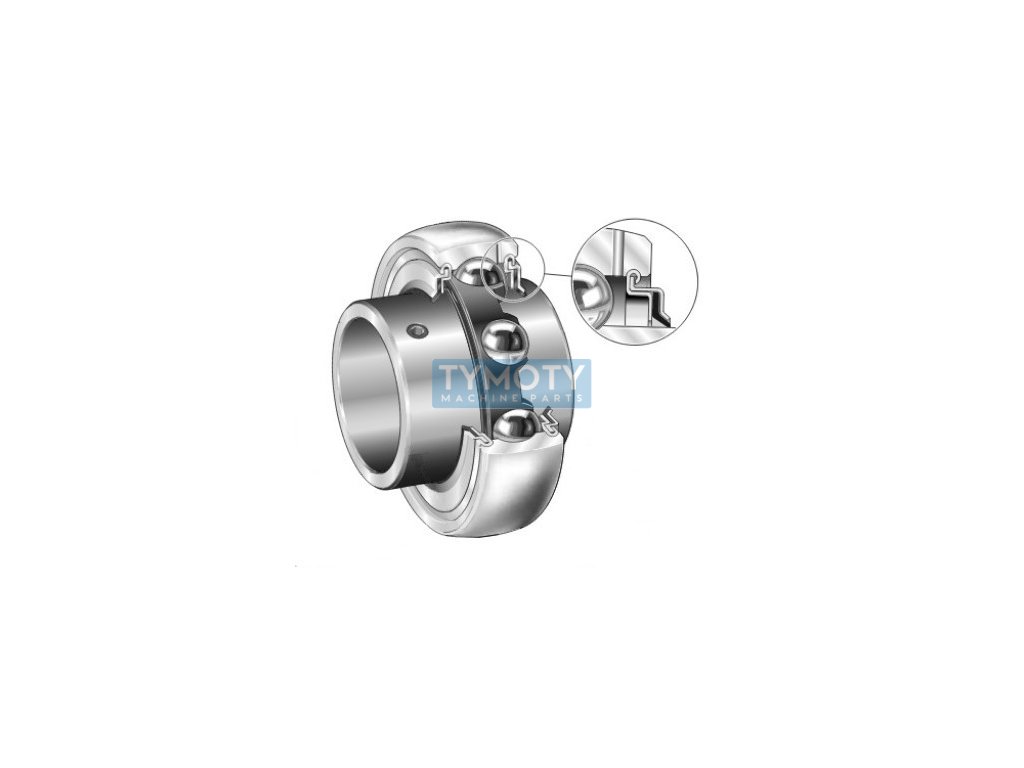

INA GYE 30-KRR-B clamping bearing
Code: 384066
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > ball clamp > extended on both sides with screws > 200 series (YAR, GYE, LE, UC) > d = 30 mm > D = 62mm C = 18mm |
|---|---|
| Weight: | 0.31 kg |
| Cage: | plastic |
| Diameter D (mm): | 30, 62 |
| Diameter d1 (mm): | 40,2 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | INA |
| Material: | steel |
| Maximum temperature °C: | +100 |
| Minimum temperature °C: | -20 |
| Seal: | two-sided |
| The shape of the outer ring: | spherical |
| Width B (mm): | 38,1 |
| Width C (mm): | 18 |
| Číslo výrobce: | 000864072-0000 |
| Značení: | GYE30-XL-KRR-B |
| Typ: | upínací ložisko |
