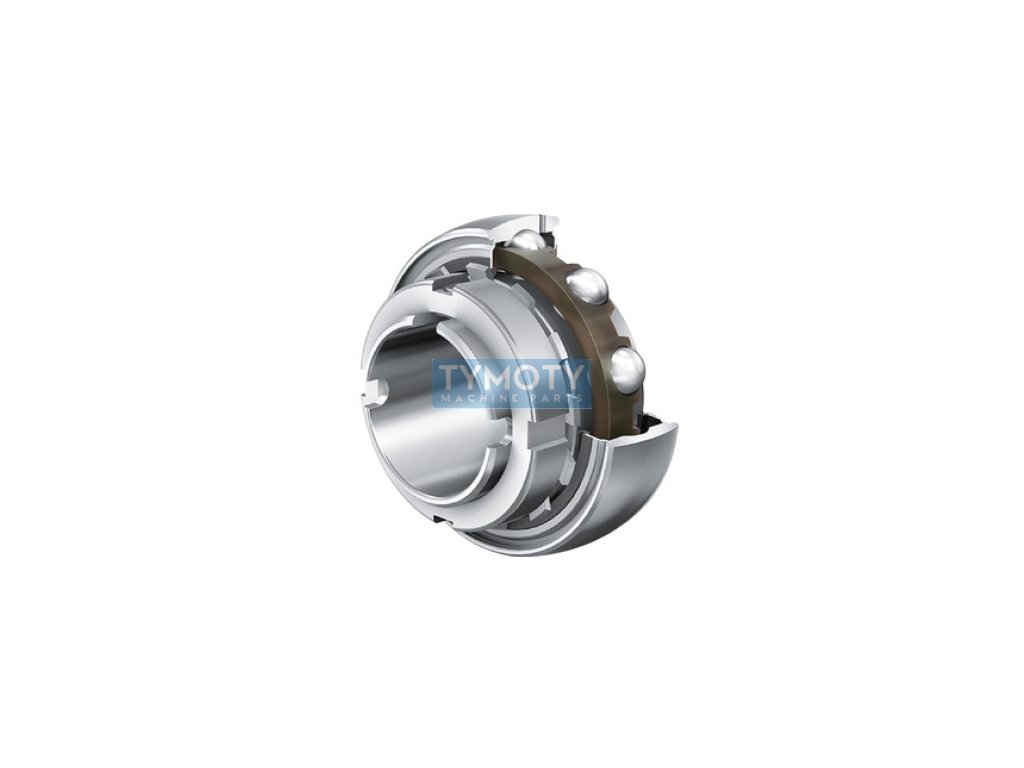

INA GSH 25-XL-2RSR-B clamping bearing with sleeve
Code: 622267
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > ball clamp > with a tapered hole > with clamping sleeve |
|---|---|
| Weight: | 0.16 kg |
| Clearance: | normal |

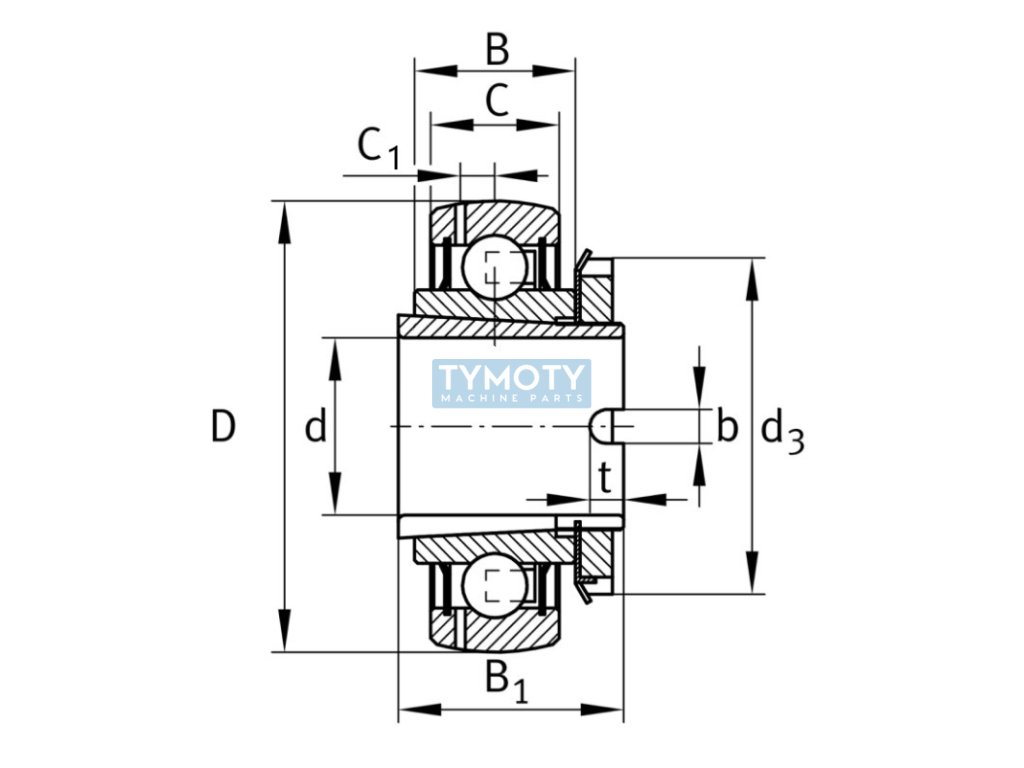

| Diameter D (mm): | 25, 52 |
| Diameter d3 (mm): | 38 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | INA |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | double-sided contact seal |
| Spacing t (mm): | 5 |
| The shape of the outer ring: | spherical |
| Width B (mm): | 15, 5 |
| Width B1 (mm): | 28 |
| Width C (mm): | 15 |
| Width C1 (mm): | 3,9 |
| Číslo výrobce: | 000992984-0000 |
| Značení: | GSH25-XL-2RSR-B |
| Typ: | upínací ložisko |
