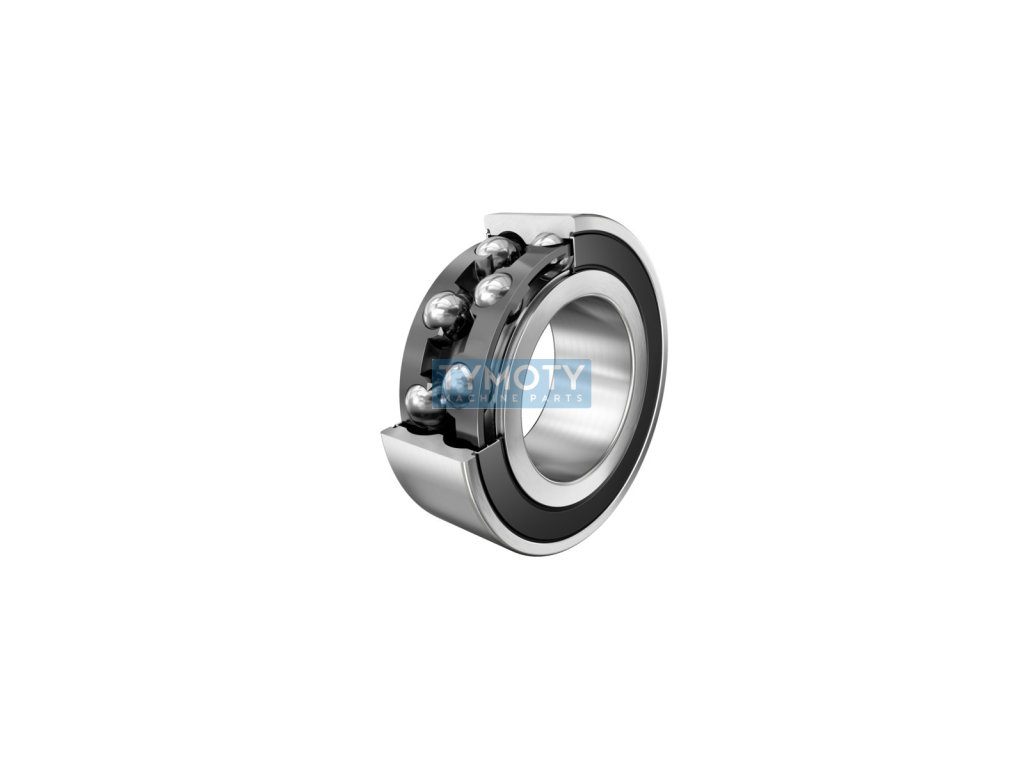

INA 3804-2Z angular contact ball bearing
Code: 618065
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > ball bearing with diagonal contact > 38.. double row > 3804 |
|---|---|
| Weight: | 0.016 kg |
| Angle ( ° ): | 30-40° |
| Cage: | polyamide |
| Clearance: | normal |
| Diameter D (mm): | 20, 32 |
| Manufacturer's brand: | INA |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | double-sided cover, sheet metal |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 10 |
| Číslo výrobce: | 000983489-0000 |
| Značení: | 3804-2Z |
| Typ: | kuličkové ložisko s kosoúhlým stykem |
