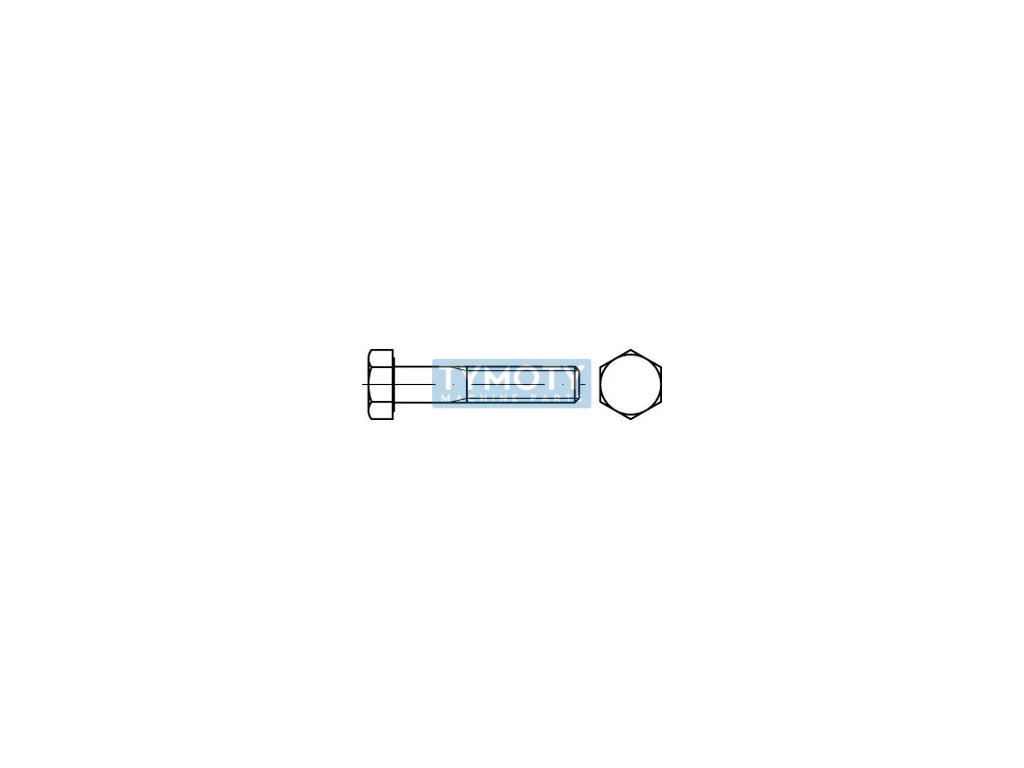

Hexagonal screw with partial thread DIN 960 M20x1.50x75-10.9
Code: 837544
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > hexagon head screws > fine part. thread DIN 960 > steel 10.9 without treatment |
|---|---|
| Weight: | 0.253 kg |
| CSN standard: | 021101 |

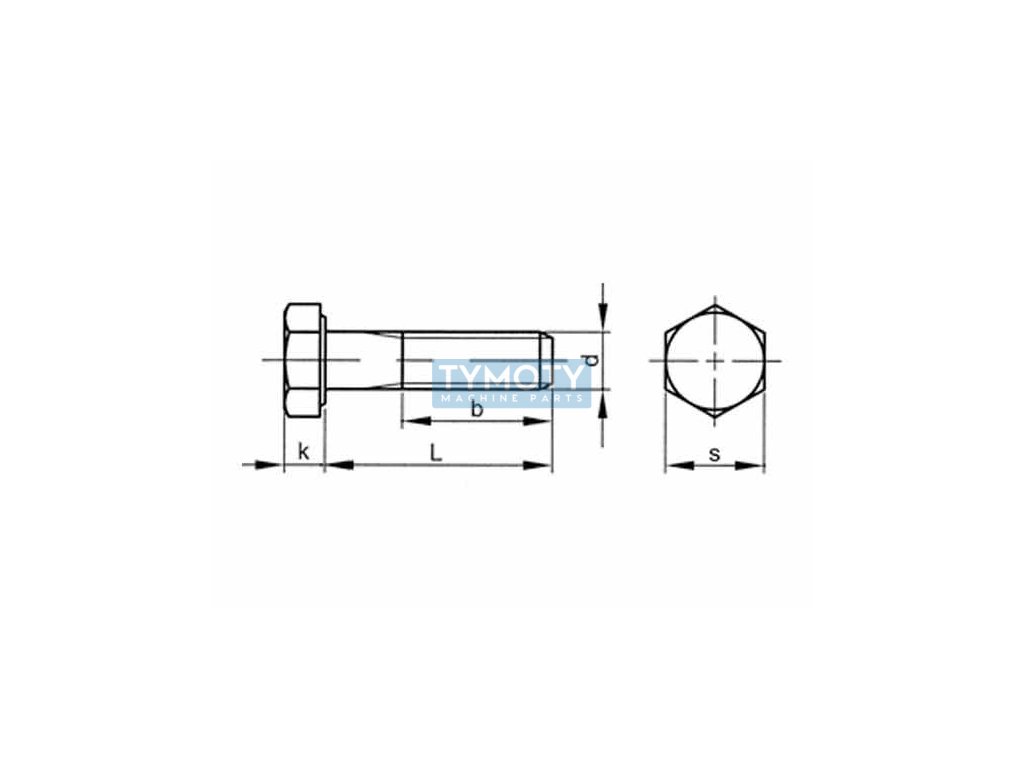

| Diameter D (mm): | M20x1,50 |
| DIN standard: | 960 |
| Fortress class: | 10,9 |
| Head shape: | hexagonal |
| Height k (mm): | 12,5 |
| ISO standard: | 8795 |
| Length L (mm): | 75 |
| Material: | steel |
| Pitch: | 1,50 |
| Surface finish: | without modification |
| Thread length b (mm): | 46 |
| Thread type: | metric fine |
| Width e (mm): | 34 |
| Width s (mm): | 30 |
