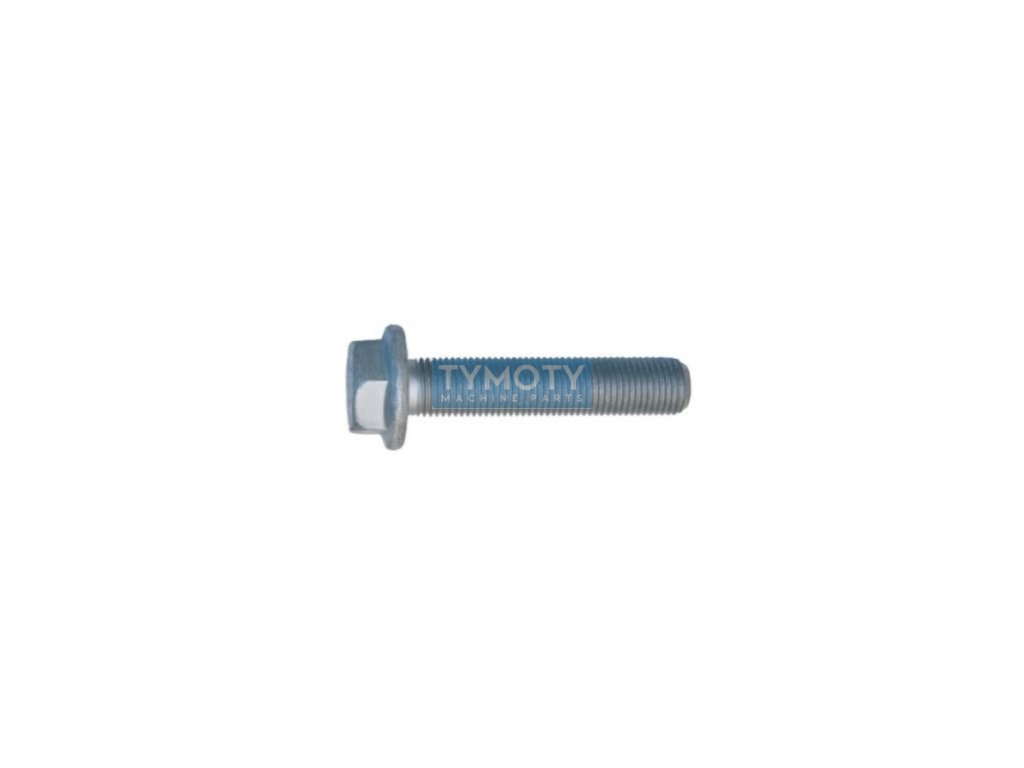

Hexagonal screw with collar DIN 6921 M10x20-10.9 zinc
Code: 819746
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > hexagon head screws > with collar DIN 6921 > galvanized steel 10.9 |
|---|---|
| Weight: | 0.026 kg |

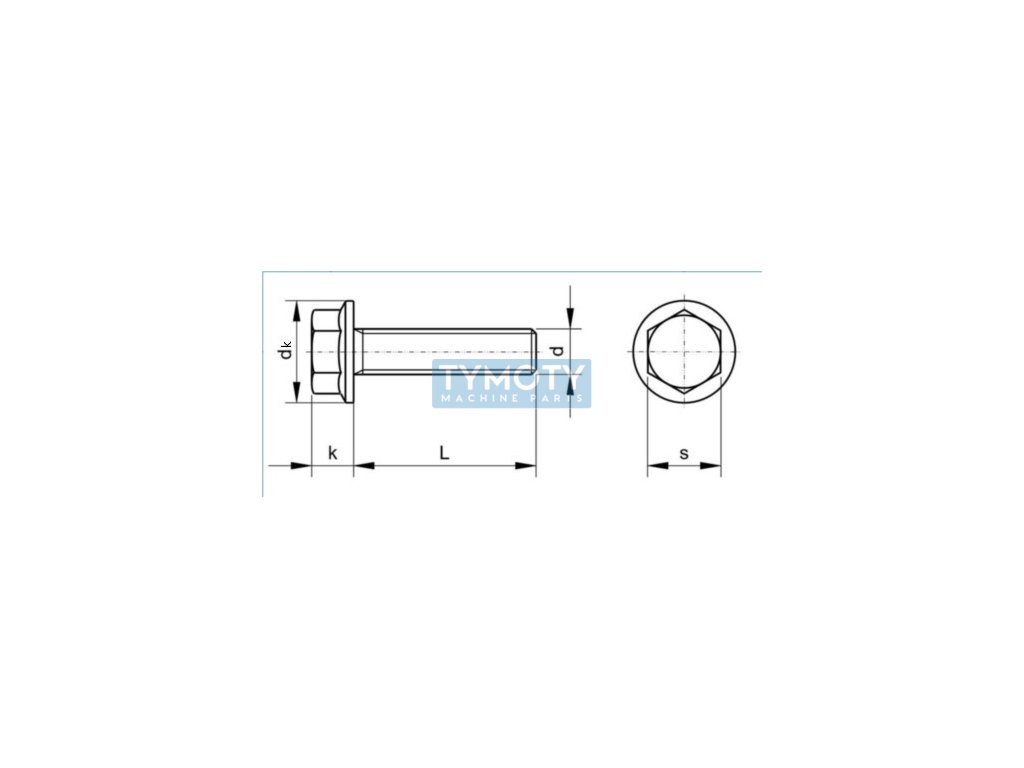

| Diameter D (mm): | M10 |
| Diameter dk (mm): | 22,3 |
| DIN standard: | 6921 |
| EN standard: | 1665 |
| Fortress class: | 10,8 |
| Head shape: | hexagonal with collar |
| Height k (mm): | 9,2 |
| Length L (mm): | 20 |
| Material: | steel |
| Pitch: | 1,50 |
| Surface finish: | zinc white |
| Thread type: | metric |
| Width s (mm): | 15 |
