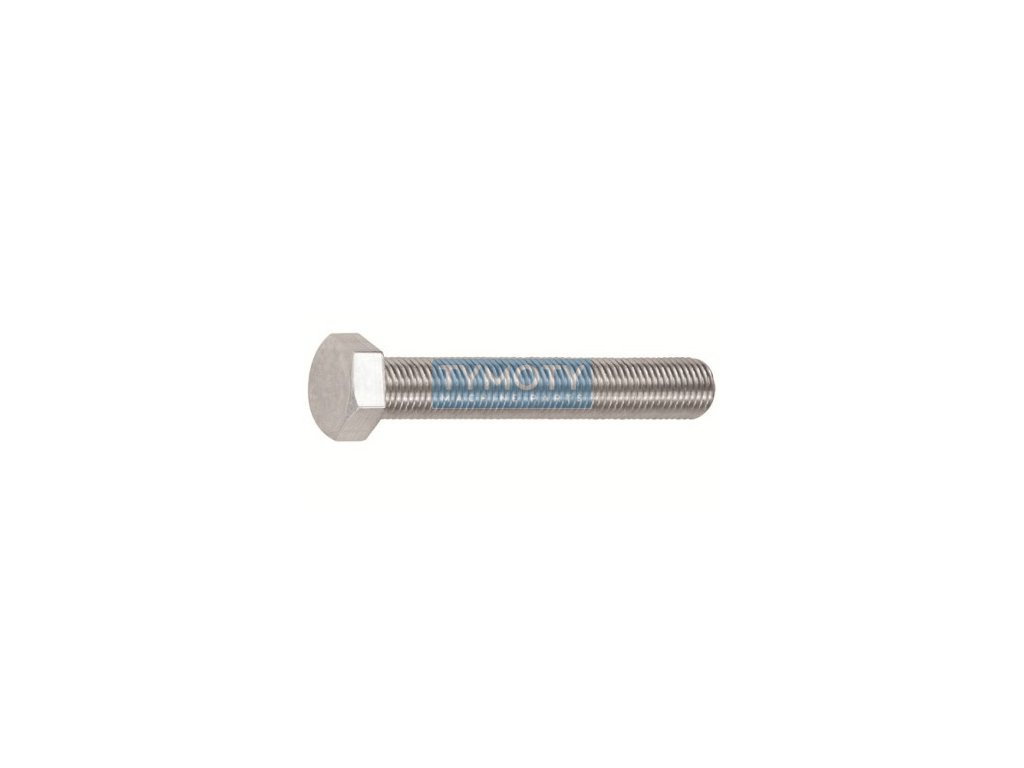

Hexagonal screw full thread DIN 933 M12x150 stainless steel A2-70
Code: 890855
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > hexagon head screws > full thread DIN 933 > stainless steel A2 |
|---|---|
| Weight: | 0.123 kg |
| CSN standard: | 021103 |
| Diameter D (mm): | M12 |
| DIN standard: | 933 |
| EN standard: | 24017 |
| Fortress class: | A2-70 |
| Head shape: | hexagonal |
| Height k (mm): | 7,5 |
| ISO standard: | ~4017 |
| Length L (mm): | 150 |
| Material: | stainless steel |
| Pitch: | 1,75 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width e (mm): | 21,1 |
| Width s (mm): | 19 |
