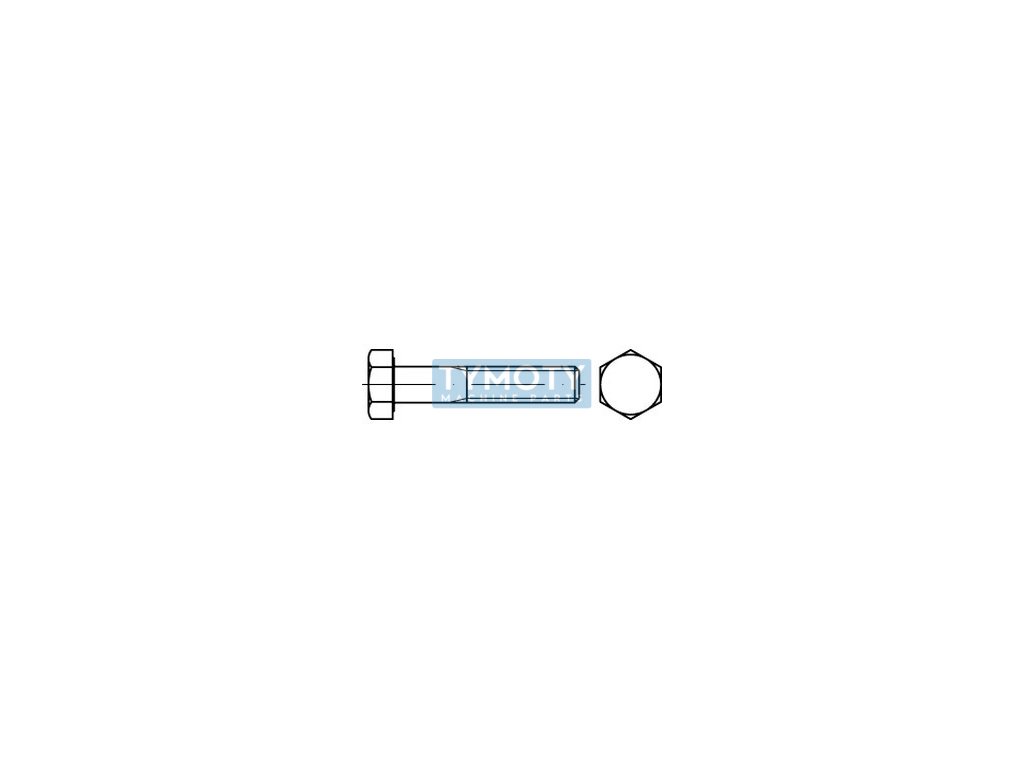

Hexagon screw with partial thread DIN 960 M36x3.00x130-8.8
Code: 837219
Product detailed description
No product's description available

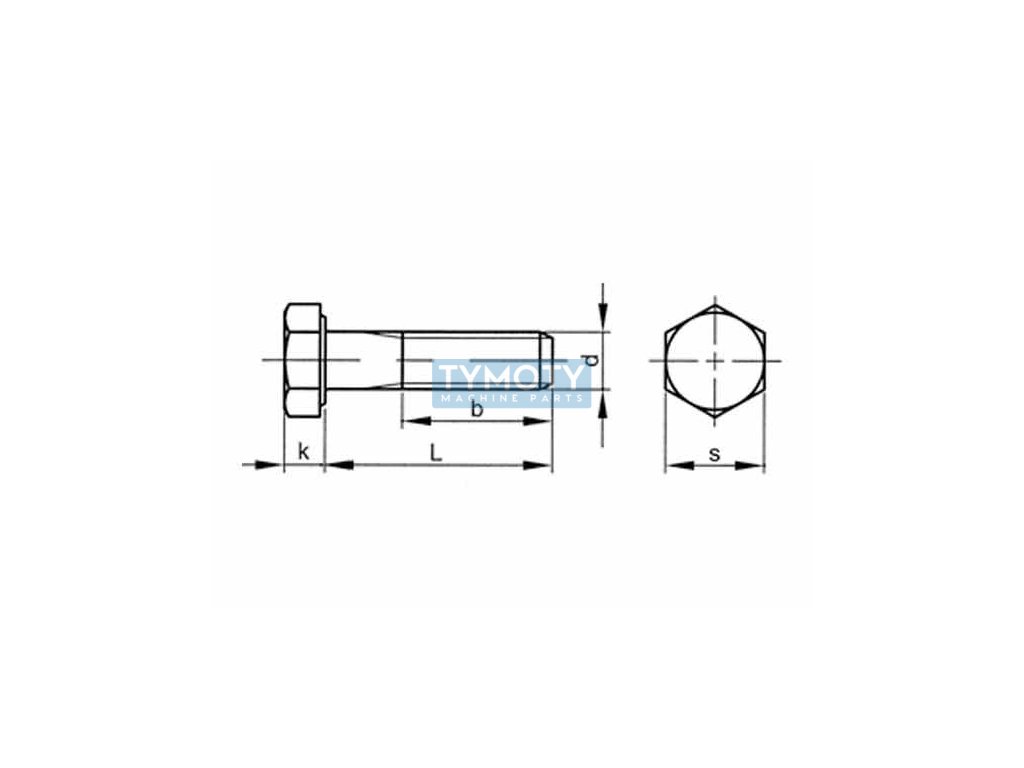

Additional parameters
| Category: | Fasteners > hexagon head screws > fine part. thread DIN 960 > steel 8.8 without treatment |
|---|---|
| Weight: | 1.379 kg |
| CSN standard: | 021101 |
| Diameter D (mm): | M36x3,00 |
| DIN standard: | 960 |
| Fortress class: | 8,8 |
| Head shape: | hexagonal |
| Height k (mm): | 22,5 |
| ISO standard: | 8795 |
| Length L (mm): | 130 |
| Material: | steel |
| Pitch: | 3,00 |
| Surface finish: | without modification |
| Thread length b (mm): | 84 |
| Thread type: | metric fine |
| Width e (mm): | 61 |
| Width s (mm): | 55 |
