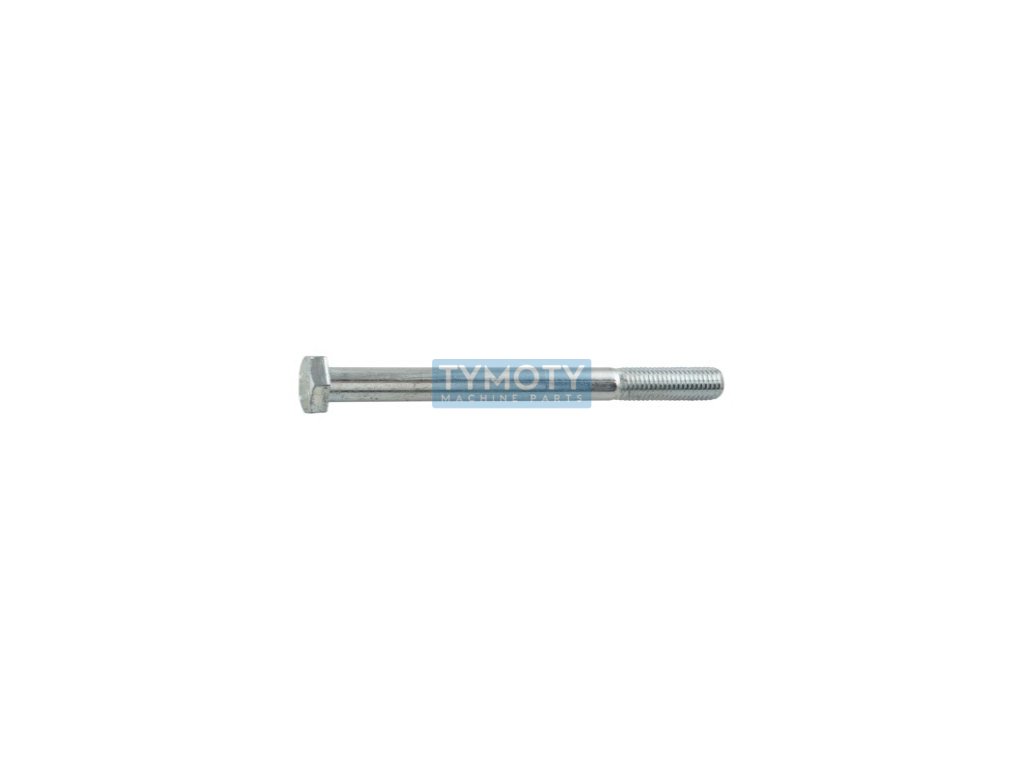

Hexagon screw with partial thread DIN 931 M8x240-8.8 galvanized
Code: 812102
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > hexagon head screws > partial thread DIN 931 > galvanized steel 8.8 |
|---|---|
| Weight: | 0.092 kg |
| CSN standard: | 021101,55 |
| Diameter D (mm): | M8 |
| DIN standard: | 931 |
| EN standard: | 24014 |
| Fortress class: | 8,8 |
| Head shape: | hexagonal |
| Height k (mm): | 5,3 |
| ISO standard: | 4014 |
| Length L (mm): | 240 |
| Material: | steel |
| Pitch: | 1,25 |
| Surface finish: | zinc white |
| Thread type: | metric |
| Width e (mm): | 14 |
| Width s (mm): | 13 |
