Hexagon screw with partial thread DIN 931 M10x45-8.8 without PU
Code: 811126
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > hexagon head screws > partial thread DIN 931 > steel 8.8 without treatment |
|---|---|
| Weight: | 0.038 kg |
| CSN standard: | 021101,50 |

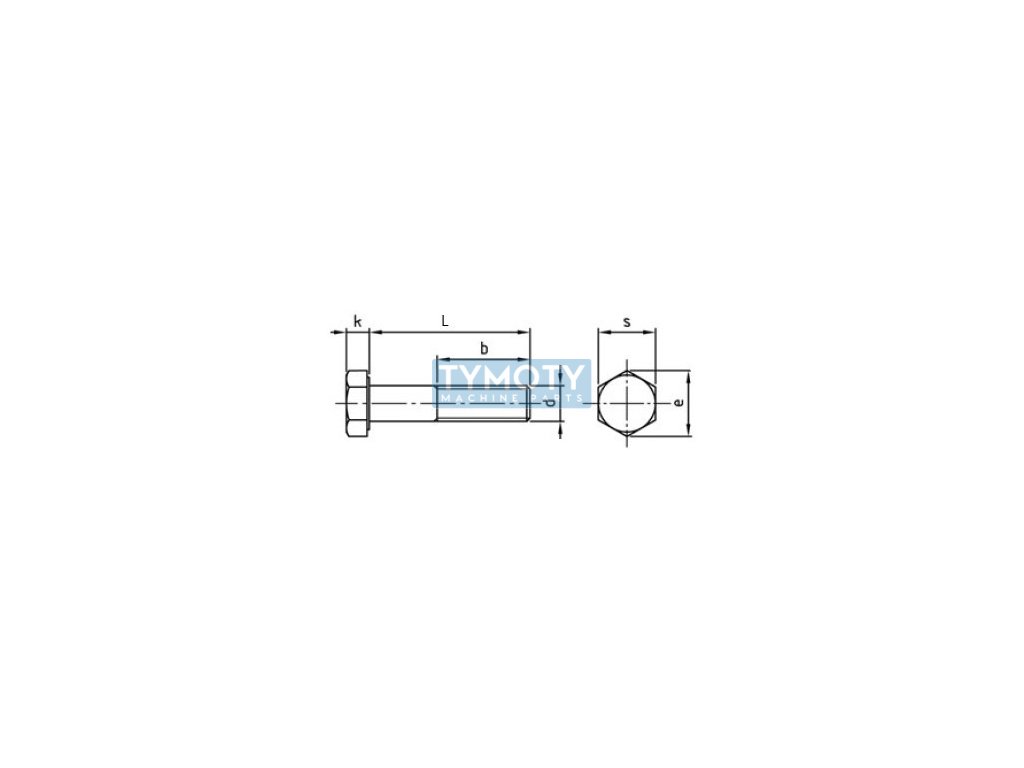

| Diameter D (mm): | M10 |
| DIN standard: | 931 |
| EN standard: | 24014 |
| Fortress class: | 8,8 |
| Head shape: | hexagonal |
| Height k (mm): | 6,4 |
| ISO standard: | ~4014 |
| Length L (mm): | 45 |
| Material: | steel |
| Pitch: | 1,50 |
| Surface finish: | without modification |
| Thread length b (mm): | 26 |
| Thread type: | metric |
| Width e (mm): | 19 |
| Width s (mm): | 17 |
