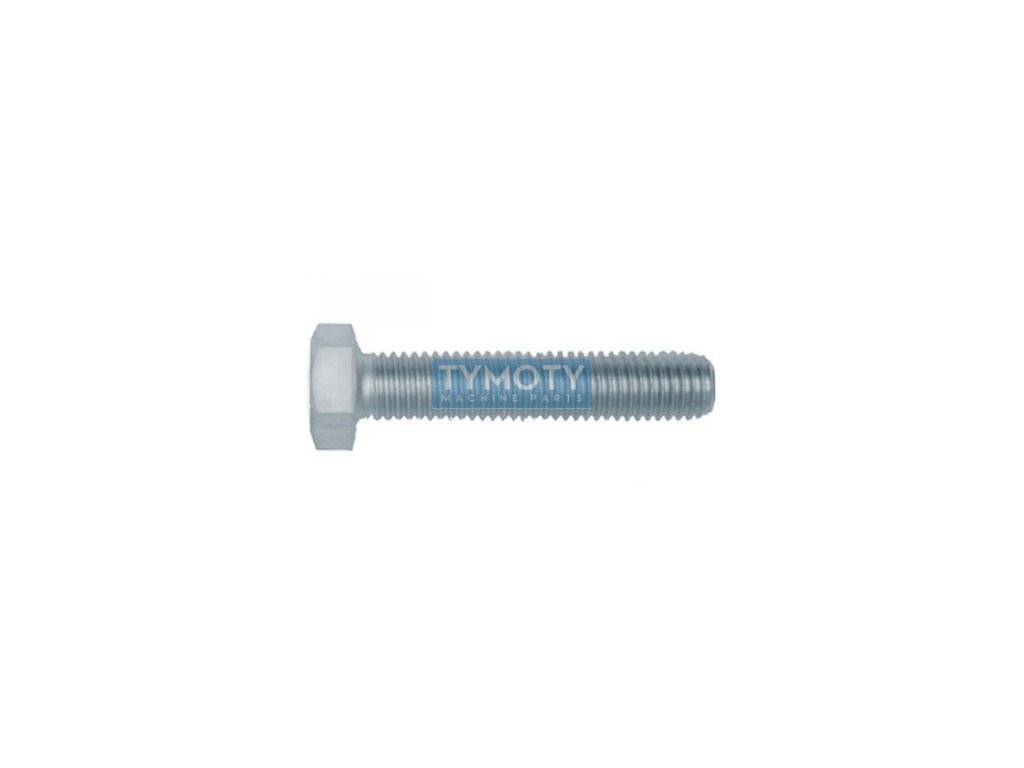

Hexagon screw full thread DIN 933 M8x65-8.8 galvanized
Code: 816122
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > hexagon head screws > full thread DIN 933 > galvanized steel 8.8 |
|---|---|
| Weight: | 0.026 kg |
| CSN standard: | 021103,55 |
| Diameter D (mm): | M8 |
| DIN standard: | 933 |
| EN standard: | 24017 |
| Fortress class: | 8,8 |
| Head shape: | hexagonal |
| Height k (mm): | 5,3 |
| ISO standard: | 4017 |
| Length L (mm): | 65 |
| Material: | steel |
| Pitch: | 1,25 |
| Surface finish: | zinc white |
| Thread type: | metric |
| Width e (mm): | 14,38 |
| Width s (mm): | 13 |
