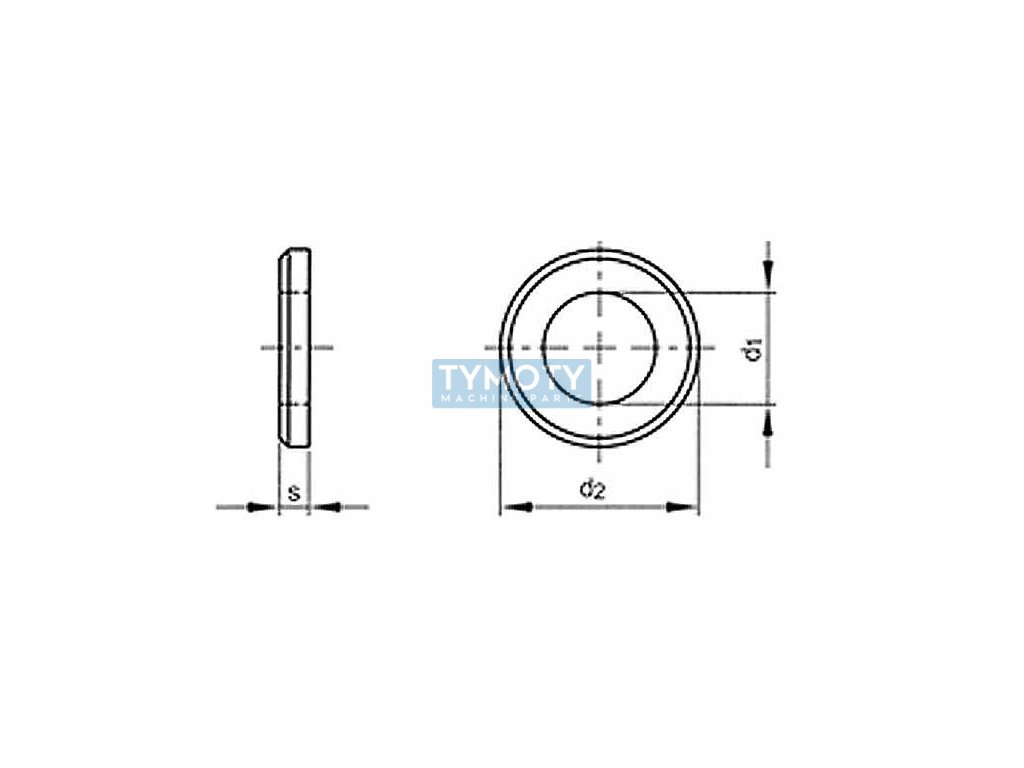

Flat beveled washer DIN 125B M48 / 50.0 galvanized
Code: 850279
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > pads flat > hex chamfered DIN 125B, ISO 7090 > galvanized steel 100HV |
|---|---|
| Weight: | 0.265 kg |
| CSN standard: | 021702 |
| Diameter D (mm): | M48 |
| Diameter d1 (mm): | 50 |
| Diameter D2 (mm): | 92 |
| DIN standard: | 125B |
| Hardness: | 100HV |
| Height H (mm): | 8 |
| ISO standard: | 7090 |
| Material: | steel |
| Surface finish: | zinc white |
