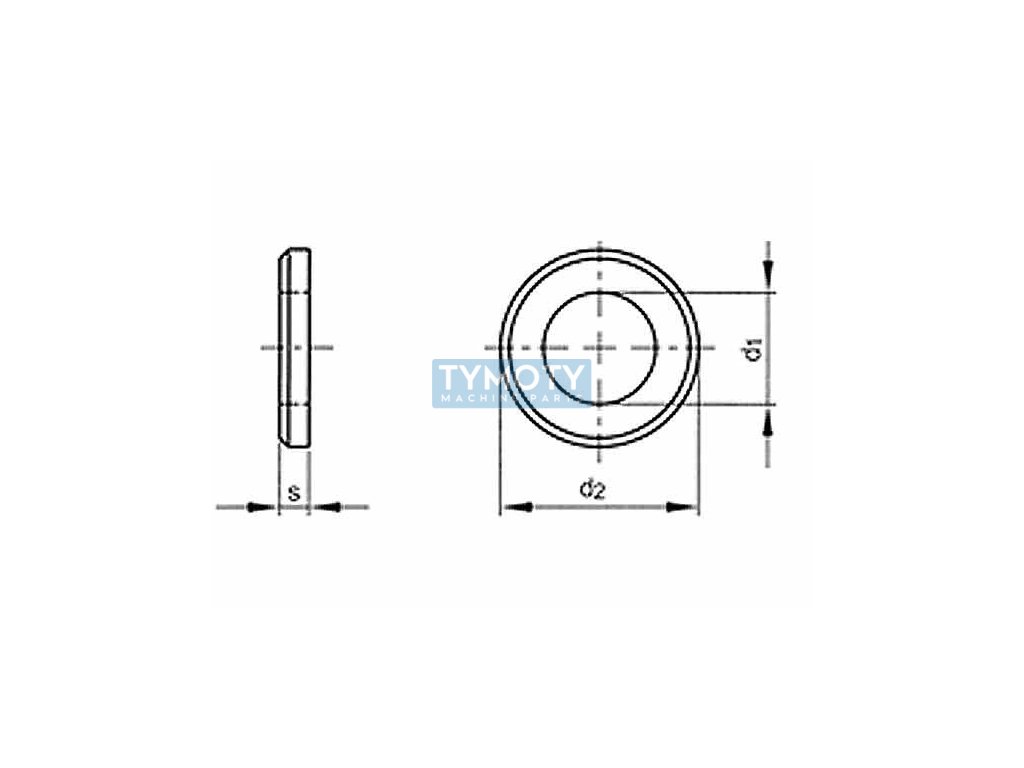

Flat bevel washer DIN 125B M8 / 8.4
Code: 850209
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > pads flat > hex chamfered DIN 125B, ISO 7090 > steel 100HV without PU |
|---|---|
| Weight: | 0.002 kg |
| CSN standard: | 021702 |
| Diameter D (mm): | M8 |
| Diameter d1 (mm): | 8,4 |
| Diameter D2 (mm): | 16 |
| DIN standard: | 125B |
| Hardness: | 100HV |
| Height H (mm): | 1,6 |
| ISO standard: | 7090 |
| Material: | steel |
| Surface finish: | without modification |
