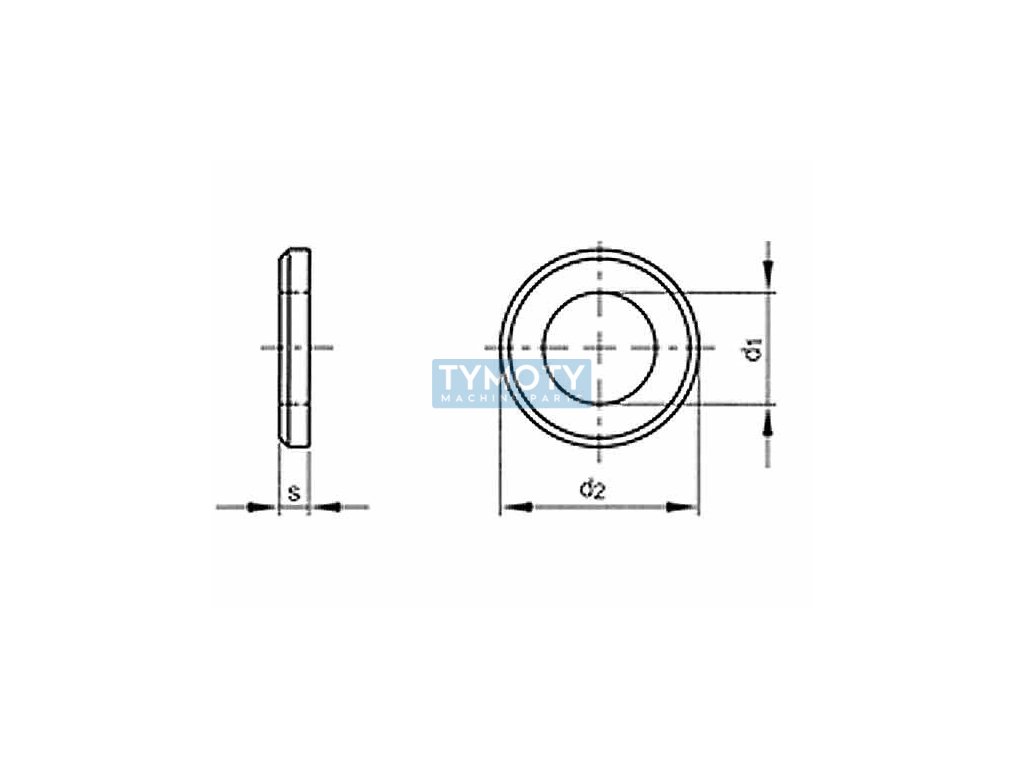

Flat bevel washer DIN 125B M42 / 43.0
Code: 850225
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > pads flat > hex chamfered DIN 125B, ISO 7090 > steel 100HV without PU |
|---|---|
| Weight: | 0.165 kg |
| CSN standard: | 021702 |
| Diameter D (mm): | M42 |
| Diameter d1 (mm): | 43 |
| Diameter D2 (mm): | 78 |
| DIN standard: | 125B |
| Hardness: | 100HV |
| Height H (mm): | 7 |
| ISO standard: | 7090 |
| Material: | steel |
| Surface finish: | without modification |
