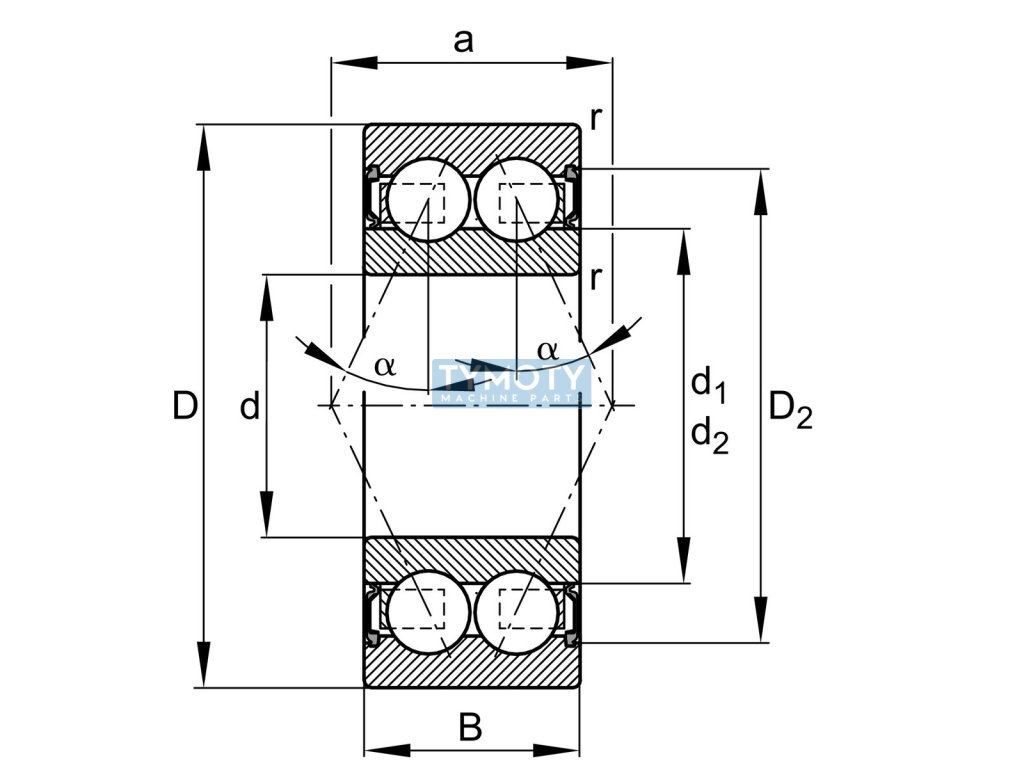

FAG 3206-BD-XL-2HRS-TVH angular contact ball bearing
Code: 617525
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > ball bearing with diagonal contact > 32.. (52..) double row > 3206 (5206) > contact seal |
|---|---|
| Weight: | 0.288 kg |
| Angle ( ° ): | 30° |
| Cage: | polyamide |
| Clearance: | normal |
| Diameter D (mm): | 30, 62 |
| Manufacturer's brand: | FAG |
| Material: | steel |
| Maximum temperature °C: | +100 |
| Minimum temperature °C: | -20 |
| Seal: | lip seal on both sides |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 23,8 |
| Číslo výrobce: | 062341111-0000 |
| Značení: | 3206-BD-XL-2HRS-TVH |
| Typ: | kuličkové ložisko s kosoúhlým stykem |
