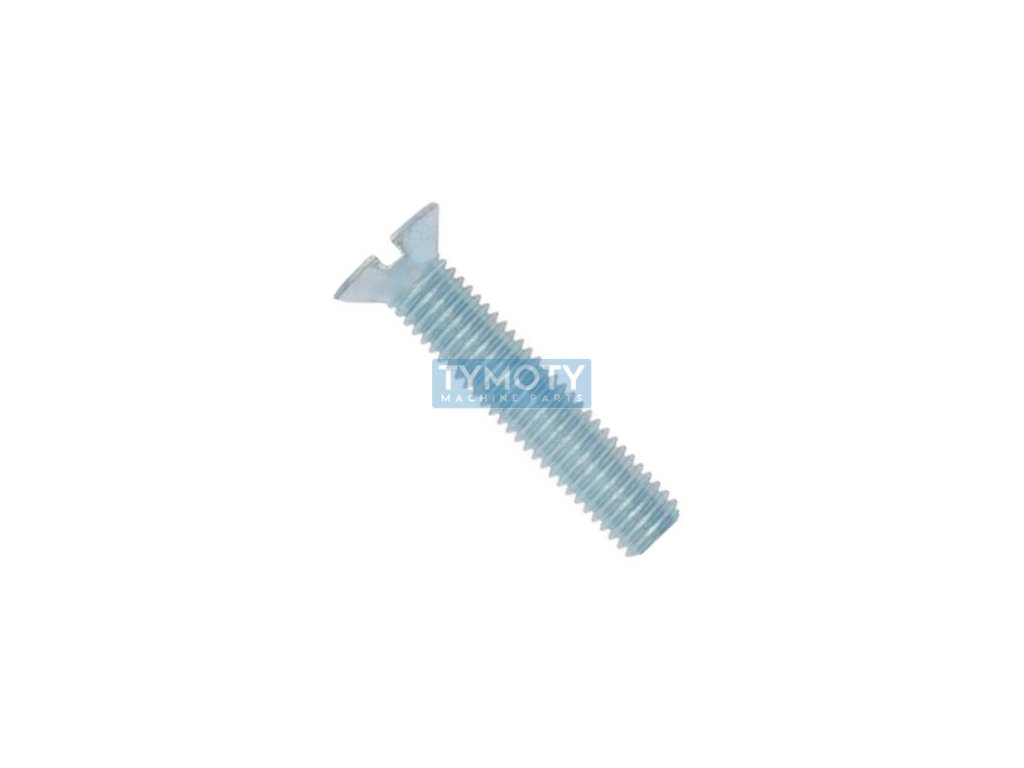

Countersunk screw with slot DIN 963 M2x4 galvanized
Code: 830701
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > countersunk head screws > groove DIN 963 > galvanized steel 4.8 |
|---|---|
| CSN standard: | 021151 |
| Diameter D (mm): | M2 |
| Diameter dk (mm): | 3,8 |
| DIN standard: | 963 |
| Fortress class: | 4,8 |
| Groove type: | ongoing |
| Head shape: | profound |
| Height k (mm): | 1,2 |
| ISO standard: | 2009 |
| Length L (mm): | 4 |
| Material: | steel |
| Pitch: | 0,40 |
| Surface finish: | zinc white |
| Thread type: | metric |
| Width s (mm): | 0,5 |
