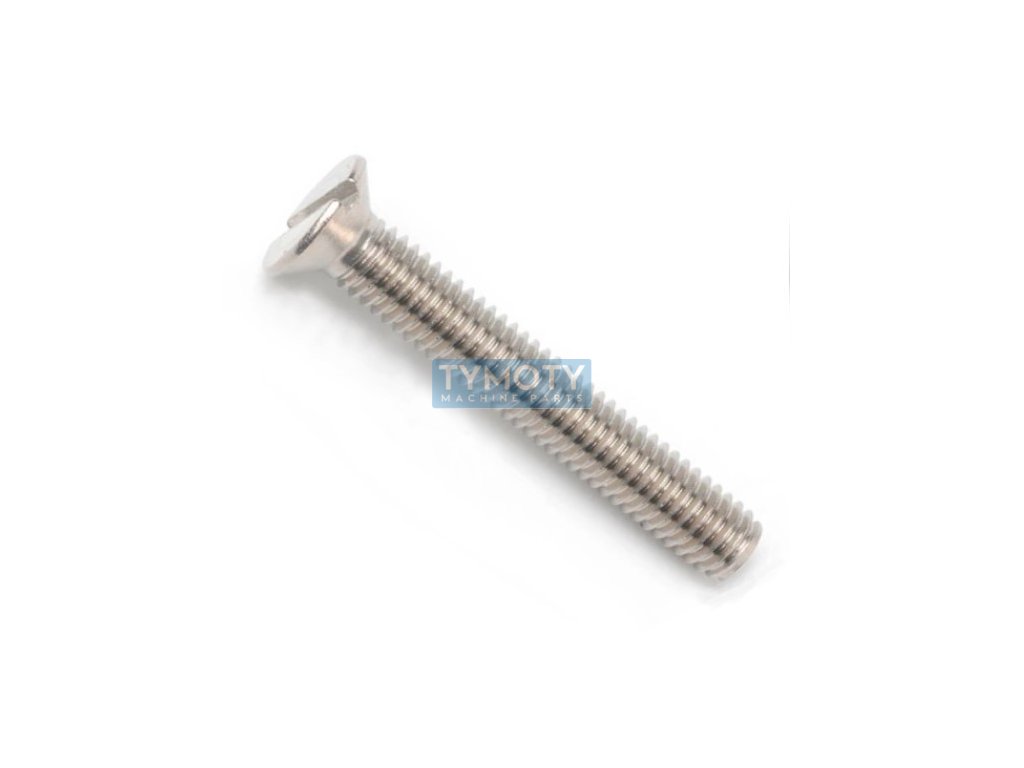

Countersunk screw with groove DIN 963 M8x12 stainless steel A2
Code: 893817
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > countersunk head screws > groove DIN 963 > stainless steel A2 |
|---|---|
| Weight: | 0.005 kg |
| CSN standard: | 021151 |

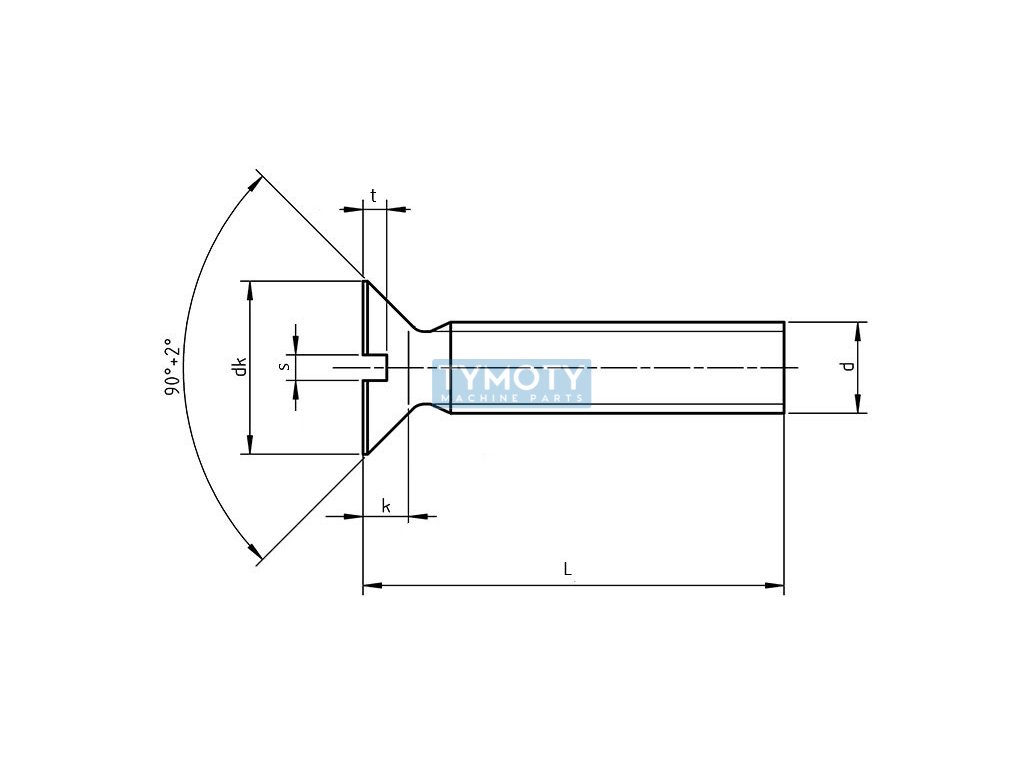

| Diameter D (mm): | M8 |
| Diameter dk (mm): | 14,5 |
| DIN standard: | 963 |
| Fortress class: | A2 |
| Groove type: | ongoing |
| Head shape: | profound |
| Height k (mm): | 4 |
| ISO standard: | 2009 |
| Length L (mm): | 12 |
| Material: | stainless steel |
| Pitch: | 1,25 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width s (mm): | 2 |
