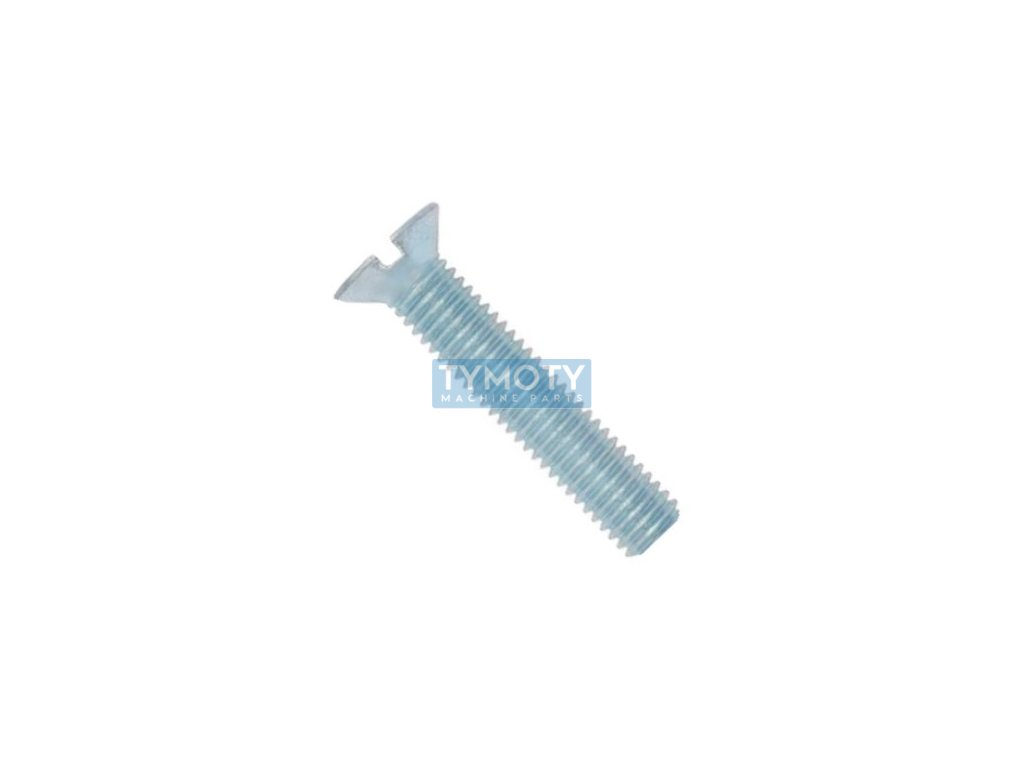

Countersunk screw with groove DIN 963 M6x30 galvanized
Code: 830812
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > countersunk head screws > groove DIN 963 > galvanized steel 4.8 |
|---|---|
| Weight: | 0.006 kg |
| CSN standard: | 021151 |

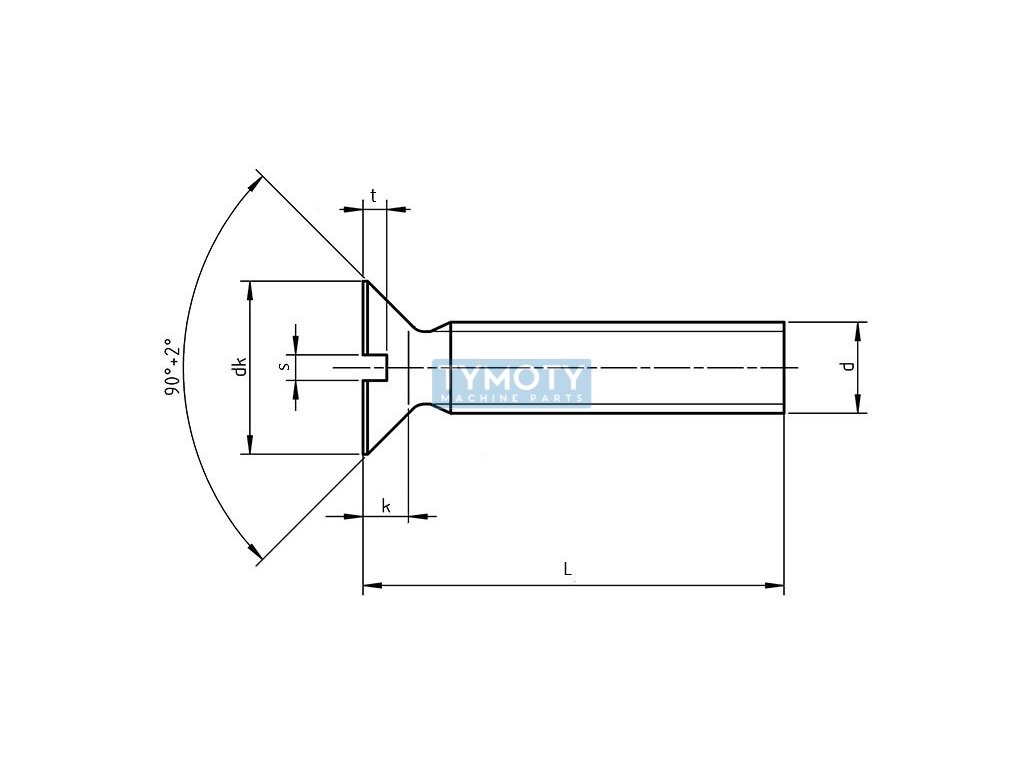

| Diameter D (mm): | M6 |
| Diameter dk (mm): | 11 |
| DIN standard: | 963 |
| Fortress class: | 4,8 |
| Groove type: | ongoing |
| Head shape: | profound |
| Height k (mm): | 3 |
| ISO standard: | 2009 |
| Length L (mm): | 30 |
| Material: | steel |
| Pitch: | 1,00 |
| Surface finish: | zinc white |
| Thread type: | metric |
| Width s (mm): | 1,6 |
